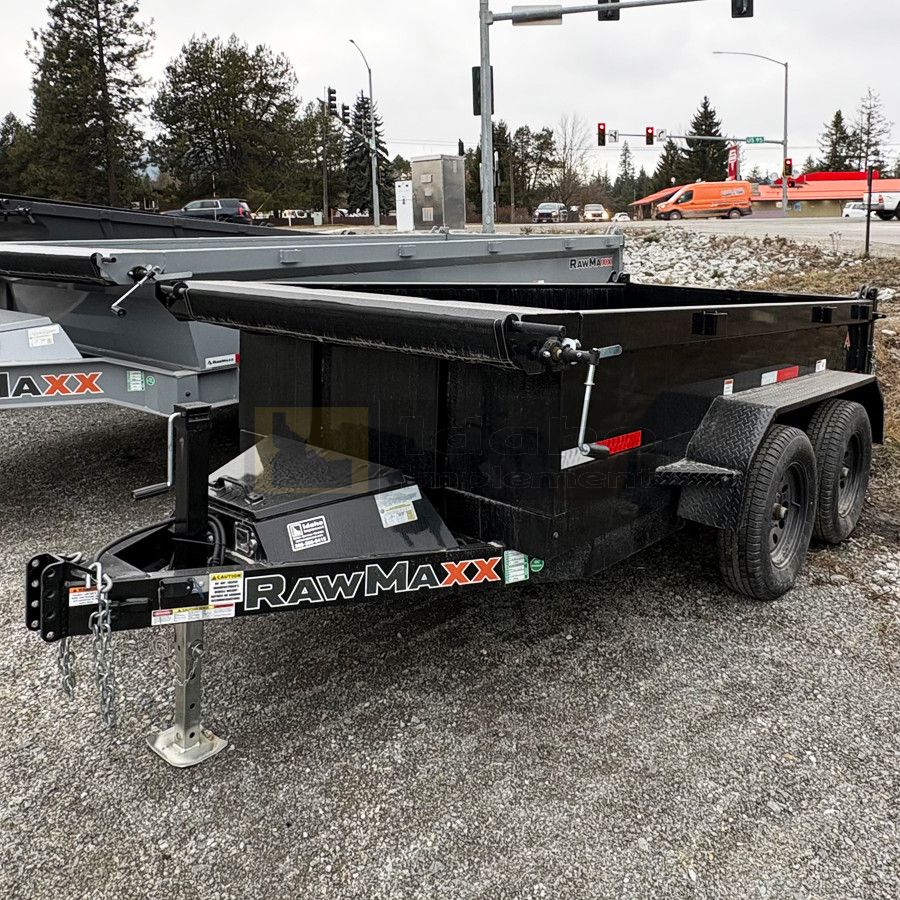

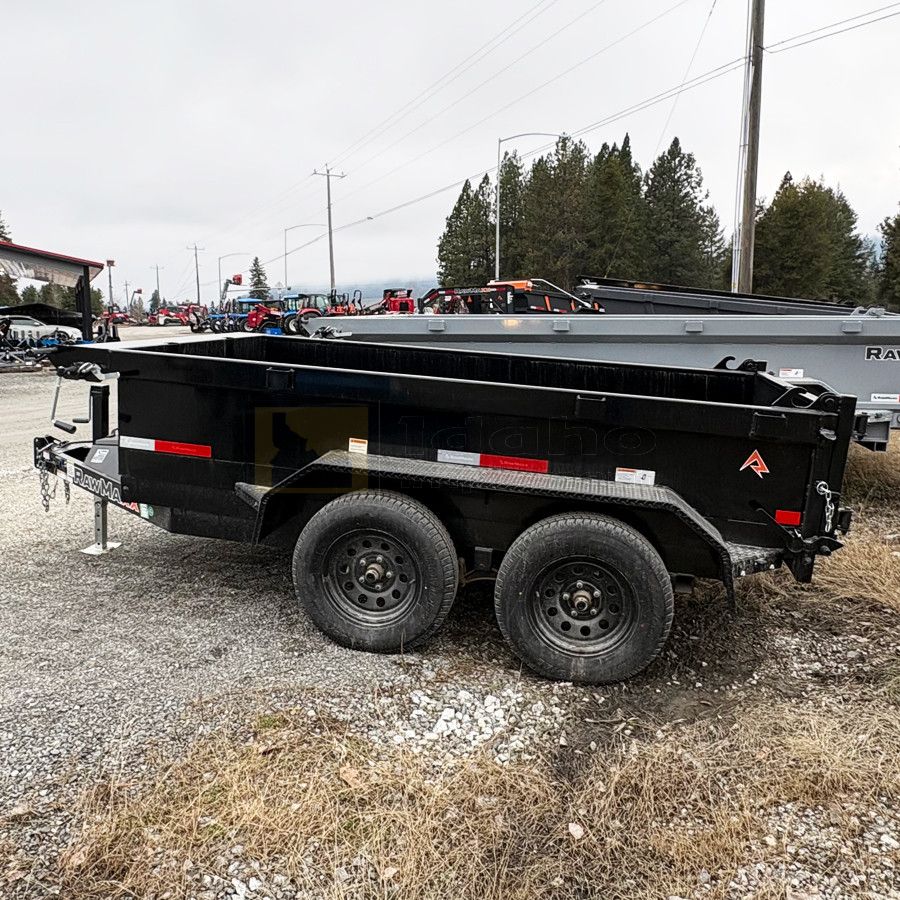

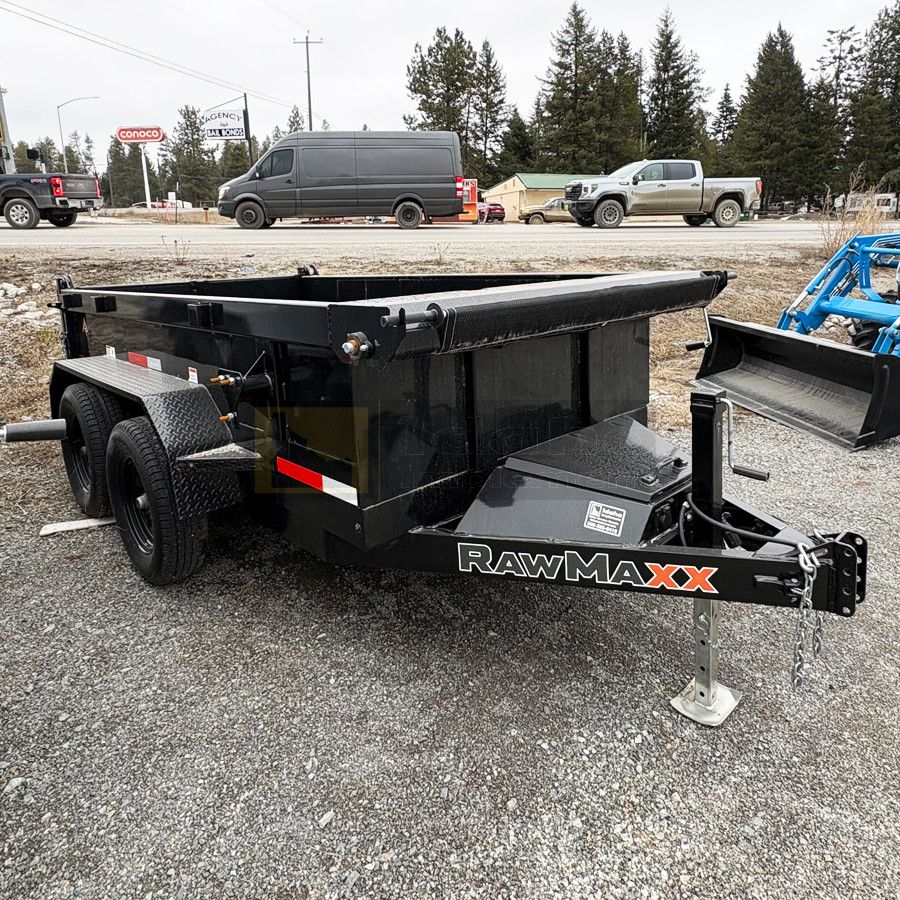

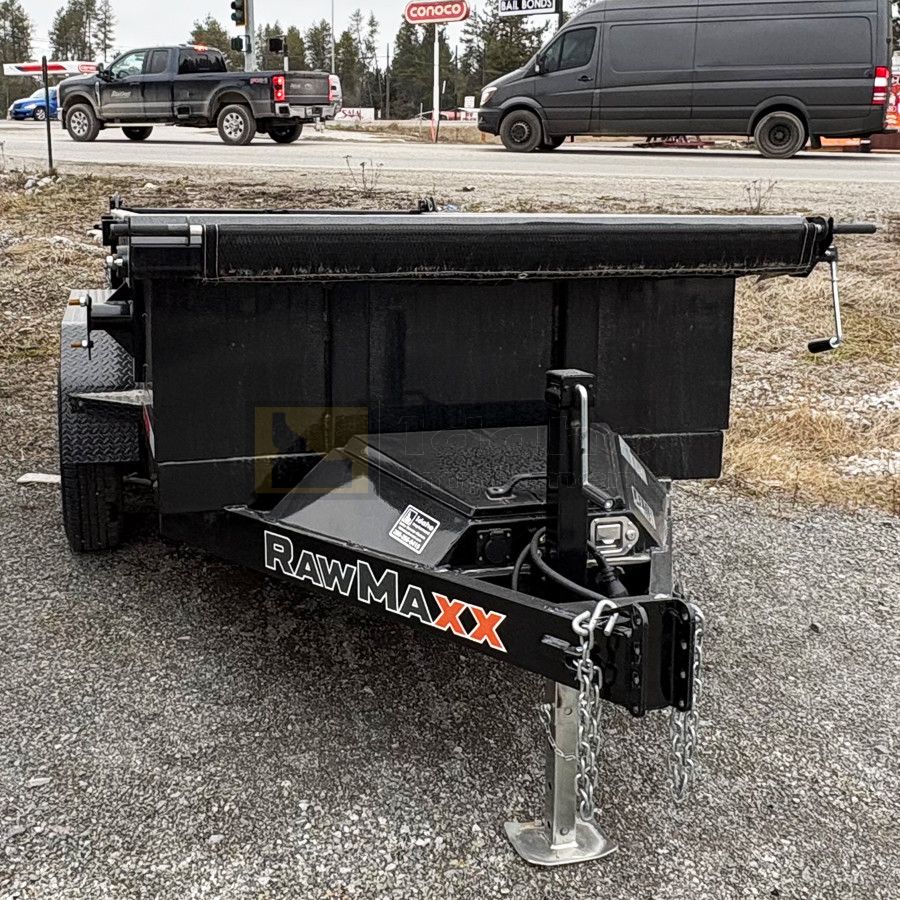

10' x 60" RawMaxx Dump Trailer Model SDX10BP7K
This trailer is in stock now! Financing Available.
Price shown is Cash or Financed Price. Credit Card Price: $8,563
Financing Application: https://www.ezdealerquote.com/d-6671a0ae7ef3c/credit-application.html?eq_tractor=176&eq_model=SDX10BP7K-134701-JetBlack
The Compact Dump Trailer That Punches Above Its Weight
When the job calls for strength in a smaller package, the RawMaxx SDX delivers. At 10’ long and 60” wide, this compact dump trailer is built for tighter spaces and lighter loads — but don’t let its size fool you. With a GVWR of 7,000 lbs. and over 5,000 lbs. of load capacity, the SDX proves that big power can come in small frames.
Engineered with a 5” C-channel frame and 3” channel cross-members, the SDX is as tough as it is nimble. Its 10-gauge steel floor, 12-gauge formed walls, and diamond plate fenders give it the durability to handle dirt, gravel, mulch, and debris day after day.

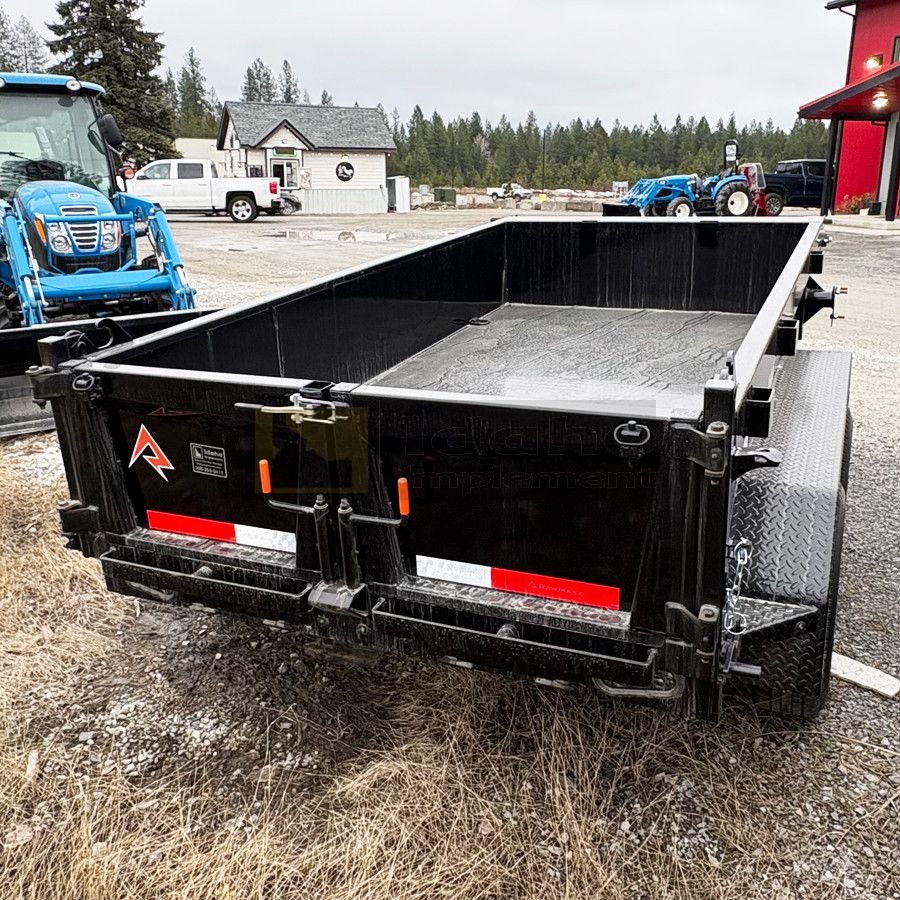

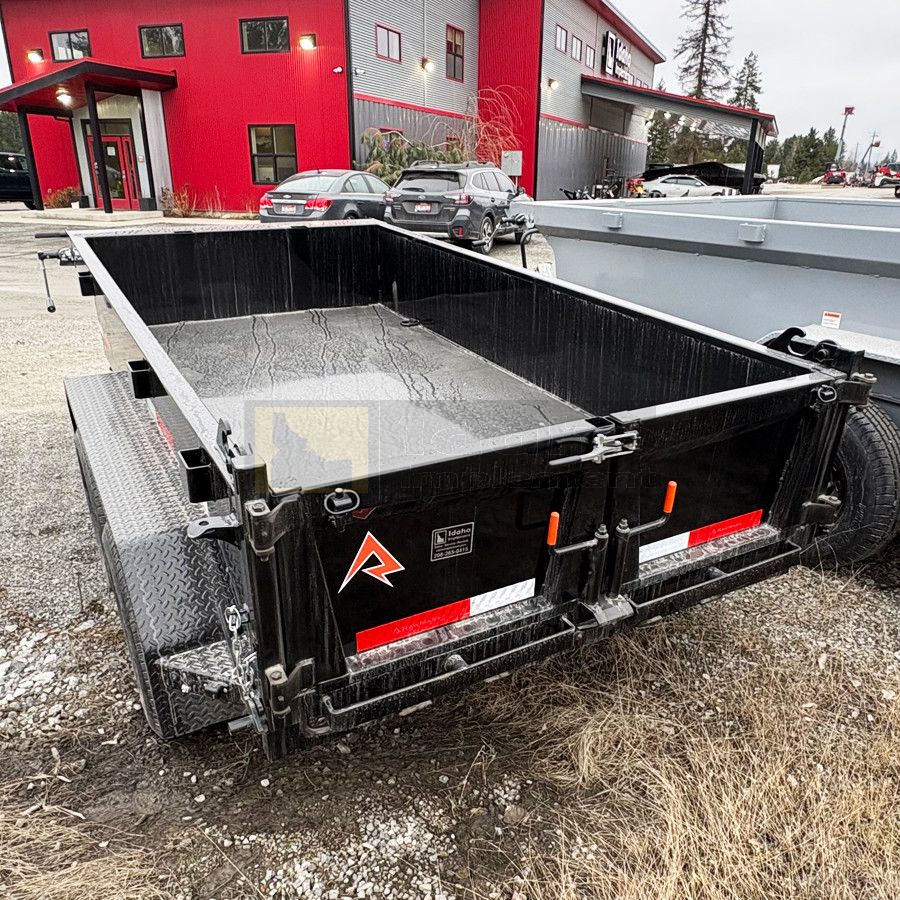

The hydraulic scissor lift system, powered by a KTI 12V pump and a 5” x 16” cylinder, provides smooth, controlled dumping at a 41° tilt angle. A versatile 3-way rear gate, EZ Slam latches, and 5’ slide-in ramps make loading and unloading fast and simple, no matter the job.

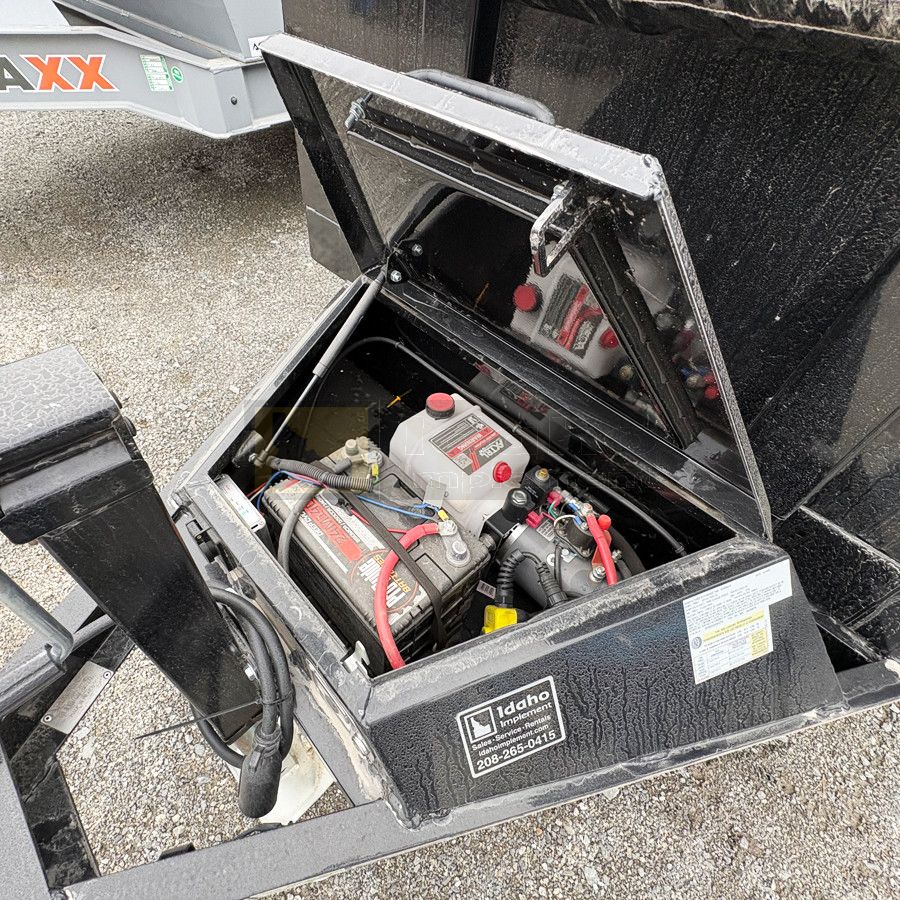

Safety and reliability are never optional. The SDX comes equipped with 1/4” safety chains, an electric breakaway kit, DOT-approved LED lighting, and a 27M deep-cycle marine battery with integrated trickle charger. Paired with radial ST205/75R15 tires, dual 3,500 lb. axles, and electric brakes, you’ll move with confidence every time you hook up.
And when you need more, the SDX is ready to adapt. Customize with removable extensions, a KTI wireless remote, or a spare tire package to fit your exact needs.
The RawMaxx SDX — compact, tough, and mighty enough to earn its place on any jobsite.
| SKU | RAW-SDX10BP7K-134701 |
|---|---|
| Model | SDX10BP7K |
| Length, Deck | 10' |
| Width, Deck | 60" |
| Height, Deck | 22" |
| Weight | 2494 lbs |
| Weight Rating | GVWR: 7,000 lbs. GAWR: 3,500 lbs. Empty Weight: 2,494 lbs. Load Capacity: 5,181 lbs. |
| Finish | Powder Coat |
| Hitch Connection Type | 2-5/16" Adjustable Ball Coupler |
| Jack(s) | Front Jack: 1 Side Wind Drop Leg - 7,000 lbs. |
| Tool Box | Included Standard |
| Safety System | Safety System Safety Chains: 1/4" Safety Chains Breakaway System: Electric Breakaway Kit Reflective Tape: 3M DOT Compliant Reflective Tape |
| Frame / Deck | Frame Main Frame: 5" C Channel Frame Cross-Member: 4" x 3" x 3/16" Tubing |
| Color | Black (Other Colors Available/Optional) |
| Running Gear | Tires Type: Radial Tires Size: ST205/75R15 Ply: 8 Ply Rating: 2,040 lbs. Rims: 15” Black Mod Wheels Bolt Pattern: 550 Suspension Axle Type: Spring Axles: 2 Rating: 3,500 lbs. Brakes: Electric |
| Electrical & Lighting | Wiring Front Plug 7 - Way Plug Frame Wiring: All Weather Wiring Harness |
| Warranty, Axles | 5 Year Dexter |
| Manufacturer's Warranty | 3 Year Structural / 1 Year Paint |
