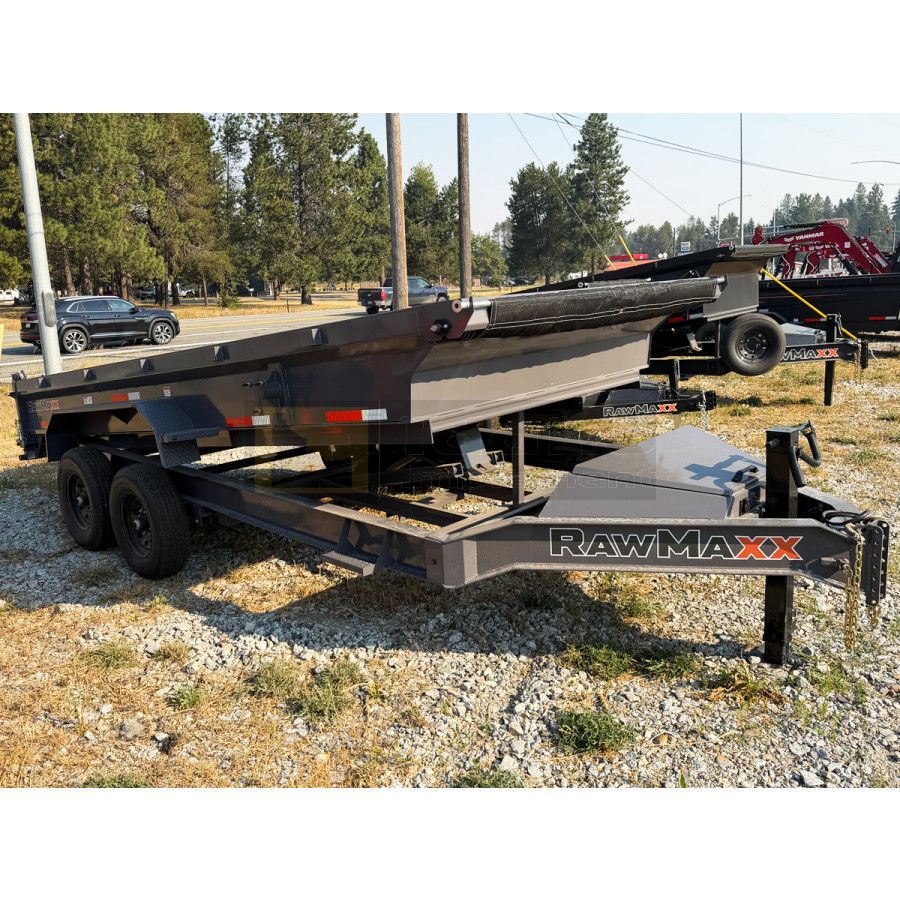

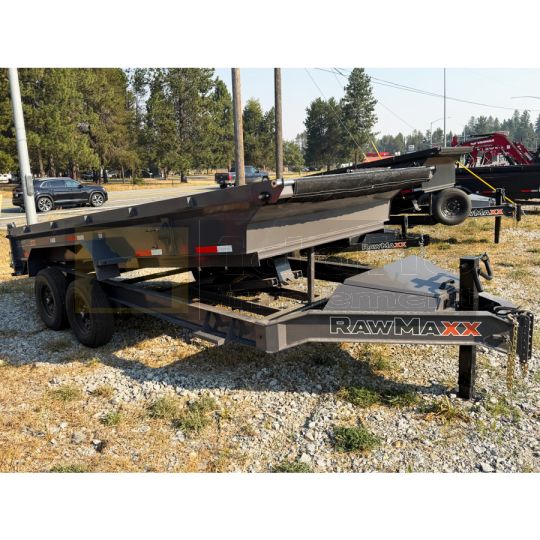

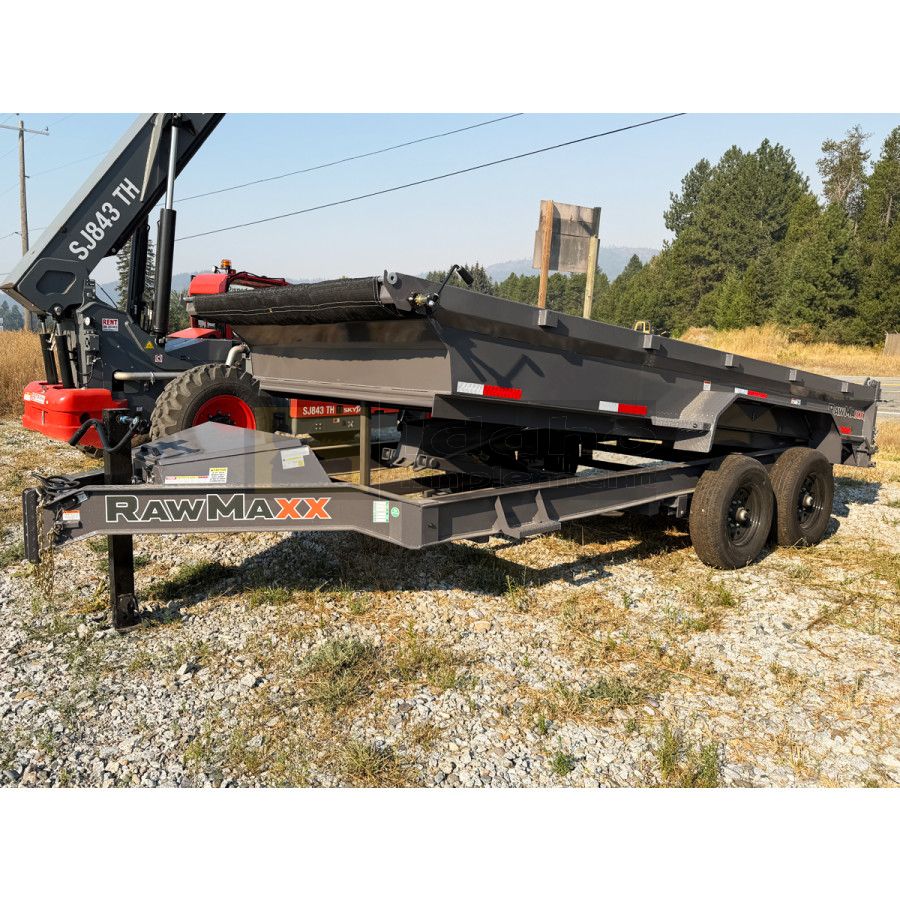

16' x 83" RawMaxx Dump Trailer Model GDX16BP14K
This trailer is in stock now! Financing Available.
Price shown is cash or financed price. Credit card price: $12,174
Financing Application: https://www.ezdealerquote.com/d-6671a0ae7ef3c/credit-application.html?eq_tractor=166&eq_model=GDX16BP14K-134496-ShadowGrey
Supreme The Heavy-Duty Dump Trailer That Rules the Jobsite
When the biggest jobs demand the strongest trailer, the RawMaxx GDX answers. Available in 12’ and 14’ lengths with a full 83” width, the GDX is built to move serious material. With a GVWR of 14,000 lbs. and over 10,000 lbs. of load capacity, this trailer is engineered for maximum performance under pressure.
Built on an 8″ I-beam frame with reinforced cross-members and a 9-gauge steel floor, the GDX is supreme in strength and durability. Its 12-gauge formed walls, heavy-duty diamond plate fenders, and EZ Slam rear gate are designed to handle rock, debris, and equipment day in and day out.
The hydraulic system takes efficiency to the next level. With a heavy-duty scissor lift, a 5” x 16” cylinder, and a 41° tilt angle, the GDX delivers fast, controlled dumps every time. Paired with 6’ slide-in ramps and a versatile 3-way rear gate, loading and unloading has never been easier.
Safety and reliability are never optional. Equipped with G70 safety chains, an electric breakaway kit, DOT-approved LED lighting, and a deep cycle marine battery with integrated charger, the GDX is ready to go to work the moment you hook up. Radial ST235/80R16 tires on dual 7,000 lb. axles keep you rolling with confidence, load after load.
And because no two jobs are alike, the GDX offers customization to fit your work. From removable extensions and hydraulic jack upgrades to wireless remotes and heavy-duty tire options, you can build the GDX to match your workflow.
The RawMaxx GDX — supreme strength, supreme performance, and supreme confidence for the heaviest jobs.
| SKU | RAW-GDX16BP14K-134496 |
|---|---|
| Model | GDX16BP14K |
| Length, Deck | 16' |
| Width, Deck | 83" |
| Weight | 4983 lbs |
| Weight Rating | GVWR: 14,000 lbs. GAWR: 7,000 lbs. Empty Weight: 4,983 lbs. Load Capacity: 10,370 lbs. |
| Finish | Powder Coat |
| Hitch Connection Type | 2-5/16" Adjustable Ball Coupler |
| Jack(s) | Front Jack: 1 Side Wind Drop Leg - 7,000 lbs. |
| Tool Box | Included Standard |
| Safety System | Safety System Safety Chains: 1/4" Safety Chains Breakaway System: Electric Breakaway Kit Reflective Tape: 3M DOT Compliant Reflective Tape |
| Frame / Deck | Frame Main Frame: 8" x 13 lb. I Beam Cross-Member: 4" x 3" x 3/16" Tubing |
| Color | Gray |
| Running Gear | Tires Type: Radial Tires Size: ST235/80R16 Ply: 10 Ply Rating: 3,520 lbs. Rims: 16” Black Mod Wheels Bolt Pattern: 8 on 6.5 Suspension Axle Type: Spring Axles: 2 Rating: 7,000 lbs. Brakes: Electric |
| Electrical & Lighting | Wiring Front Plug 7 - Way Plug Frame Wiring: All Weather Wiring Harness |
| Warranty, Axles | 5 Year Dexter |
| Manufacturer's Warranty | 3 Year Structural / 1 Year Paint |
