| Our Price | : | $12,998.00 | |
|---|---|---|---|
| SKU | : | RAW-LPX12BP14K-134047 | |
| Availability | : |
In Stock. |
|

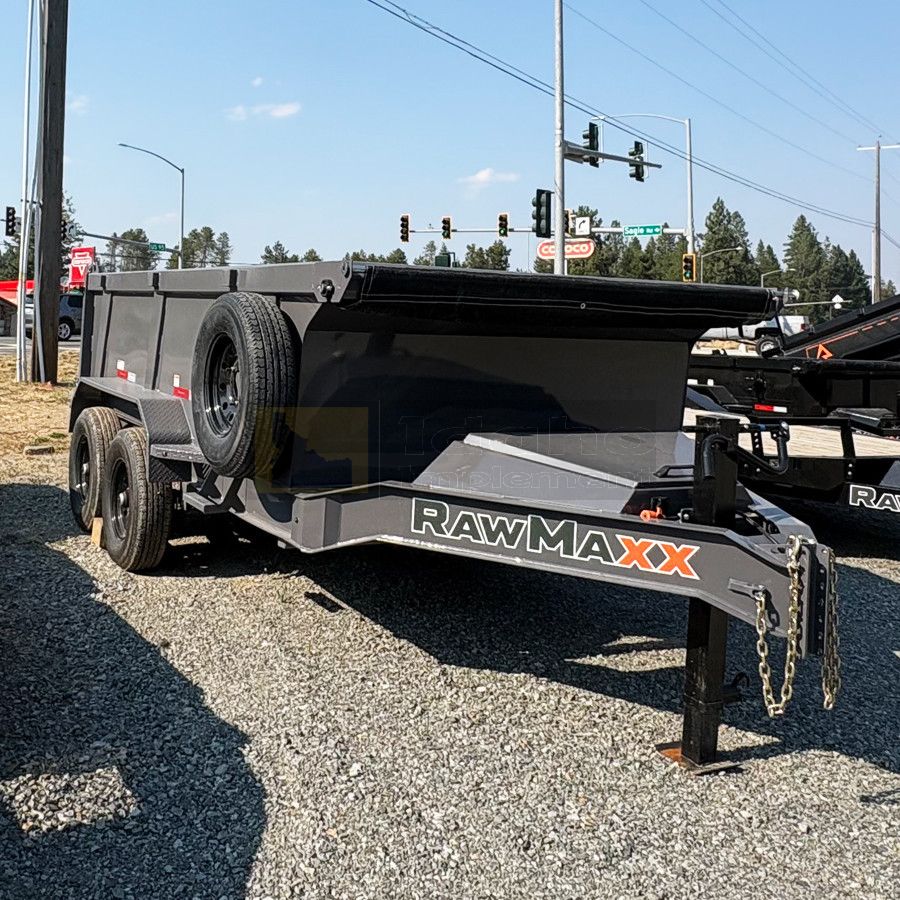

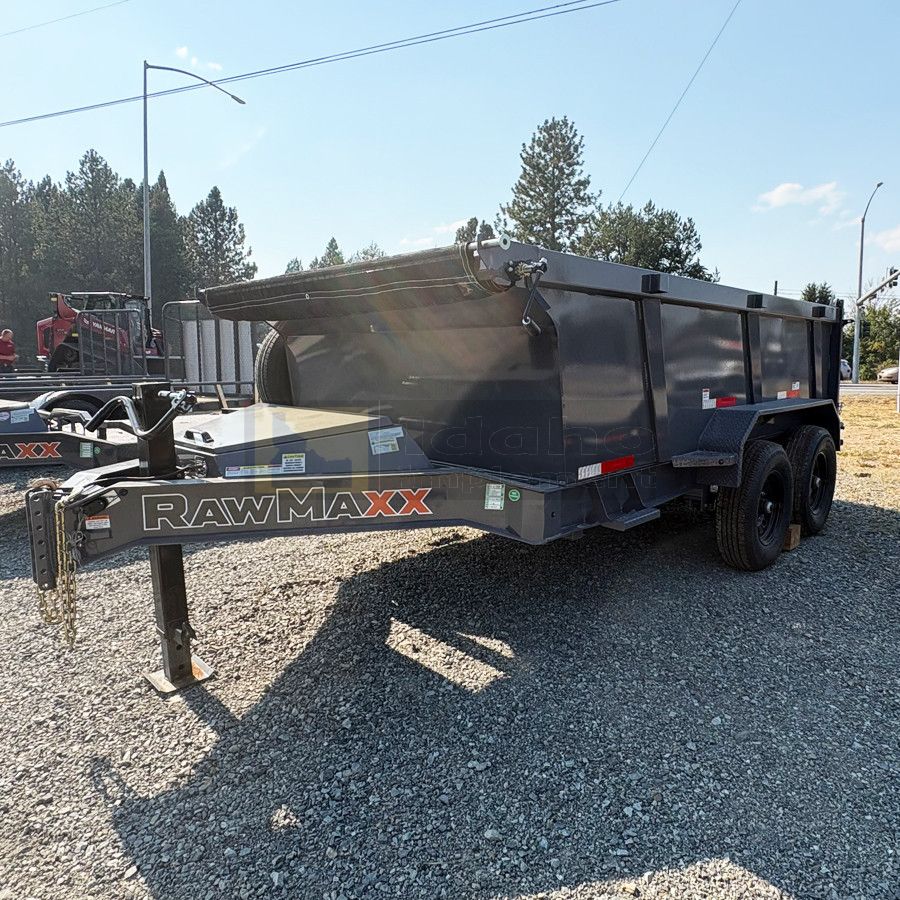

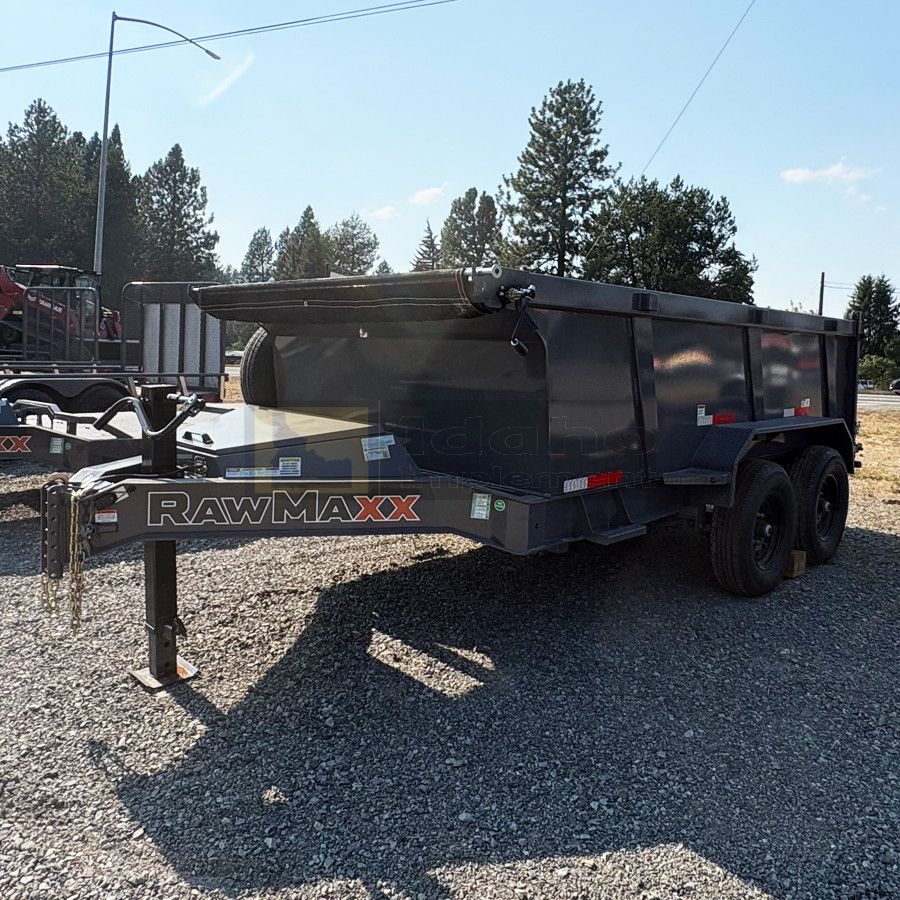

12' x 83" RawMaxx Dump Trailer Model LPX12BP14K - Free Spare Tire Included!
This trailer is in stock now! Financing Available.
Price shown is cash or financed price. Credit card price: $13,411
Financing Application: https://www.ezdealerquote.com/d-6671a0ae7ef3c/credit-application.html?eq_tractor=170&eq_model=LPX12BP14K-134047-ShadowGrey
The Bumper Pull Dump Built for Everyday Work
When the job calls for dependable dump performance without extra complexity, the RawMaxx LPX BP delivers. Available in 12’, 14’, and 16’ lengths and rated at 14,000 lbs. GVWR, it’s built for crews that need a dump trailer that shows up ready and keeps moving load after load.
The LPX BP is built on an 8″ x 13 lb. I-beam main frame with 4″ x 6″ tubing cross-members and a fully formed 8-gauge floor. With 10-gauge formed walls, reinforced side posts, and integrated stake pockets, it’s designed to take real jobsite use from concrete debris to gravel, dirt, and daily cleanup. An 83″ inside width and 5.89 cubic yards of capacity gives you the volume to stay efficient without stepping up to a bigger unit.

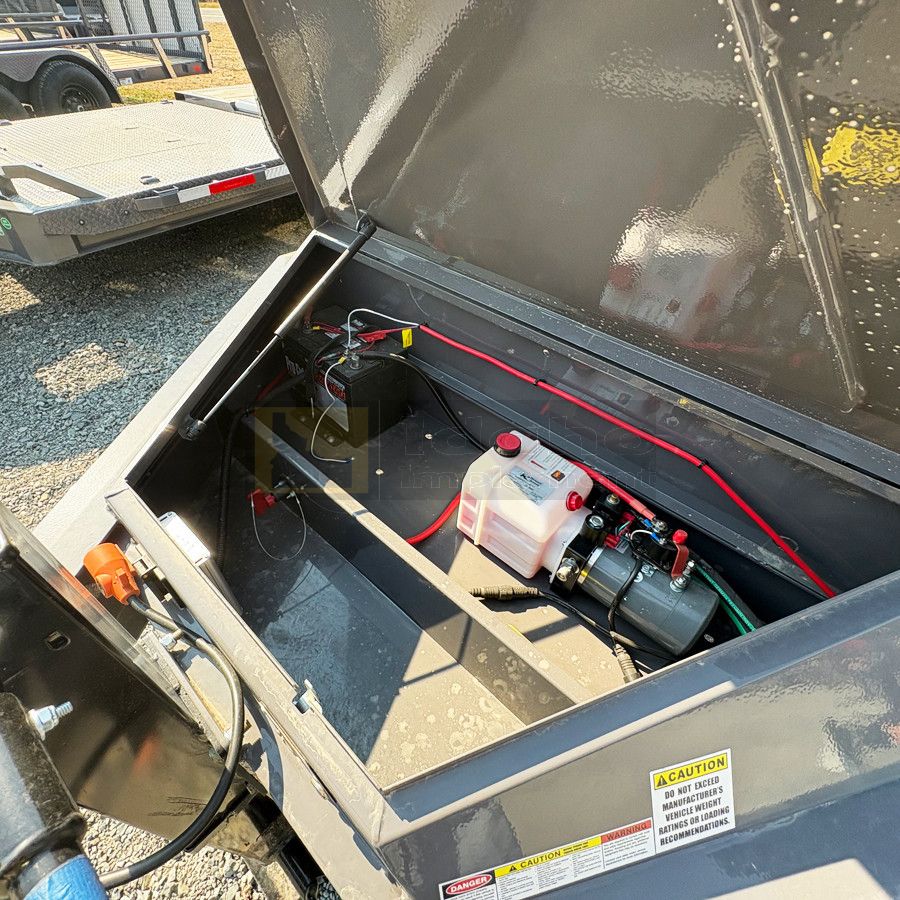

Dumping power is controlled and consistent with a hydraulic power up / power down system driven by a KTI 12V pump and a heavy-duty scissor lift. A 48° tilt angle helps material clear clean, while the Mega Boxx tongue toolbox keeps the pump, battery, and charger protected and organized. Dual 7K spring axles, electric brakes, and 10-ply radial tires keep it stable on the road and confident under load.

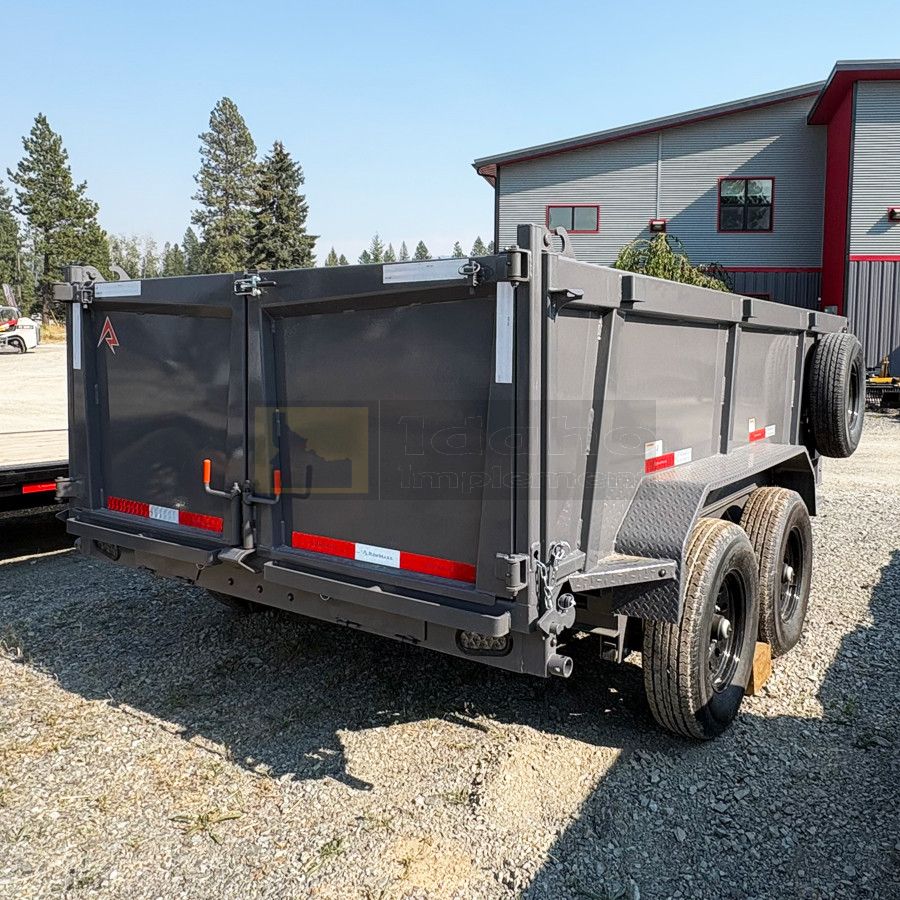

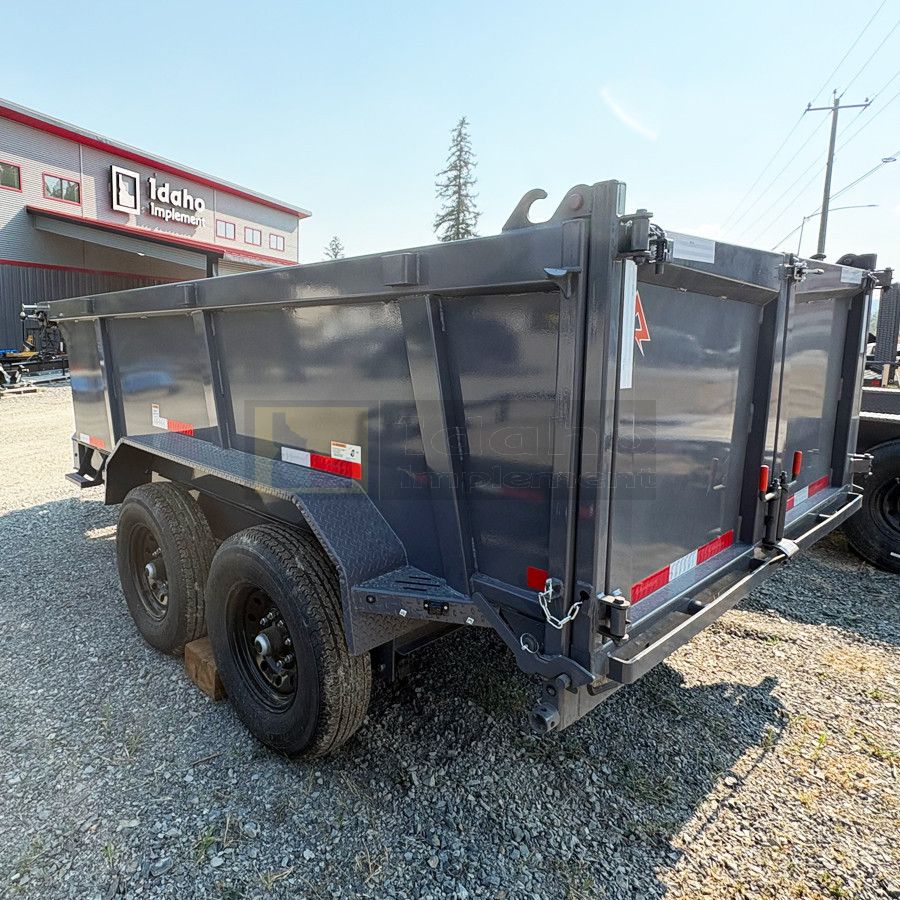

It’s finished off with the practical details that matter: a 3-way rear gate with EZ Slam latches, slide-in ramps, DOT LED lighting, all-weather wiring, and full safety equipment. Straightforward, strong, and built for the kind of work that doesn’t stop.
The RawMaxx LPX BP — proven performance, serious structure, and built to work.
| SKU | RAW-LPX12BP14K-134047 |
|---|---|
| Model | LPX12BP14K |
| Length, Deck | 12' |
| Width, Deck | 83" |
| Weight | 3525 lbs |
| Weight Rating | GVWR: 14,000 lbs. GAWR: 7,000 lbs. Empty Weight: 3,525 lbs. Load Capacity: 10,475 lbs. |
| Finish | Powder Coat |
| Hitch Connection Type | 2-5/16" Adjustable Ball Coupler |
| Jack(s) | Front Jack: 1 Side Wind Drop Leg - 7,000 lbs. |
| Tool Box | Included Standard |
| Safety System | Safety System Safety Chains: 1/4" Safety Chains Breakaway System: Electric Breakaway Kit Reflective Tape: 3M DOT Compliant Reflective Tape |
| Frame / Deck | Frame Main Frame: 8" x 13 lb. I Beam Cross-Member: 4" x 3" x 3/16" Tubing |
| Color | Gray |
| Running Gear | Tires Type: Radial Tires Size: ST235/80R16 Ply: 10 Ply Rating: 3,520 lbs. Rims: 16” Black Mod Wheels Bolt Pattern: 8 on 6.5 Suspension Axle Type: Spring Axles: 2 Rating: 7,000 lbs. Brakes: Electric |
| Electrical & Lighting | Wiring Front Plug 7 - Way Plug Frame Wiring: All Weather Wiring Harness |
| Warranty, Axles | 5 Year Dexter |
| Manufacturer's Warranty | 3 Year Structural / 1 Year Paint |
