| Our Price | : | $11,708.00 | |
|---|---|---|---|
| SKU | : | RAW-G7X22BP16K-124828 | |
| Availability | : |
In Stock. |
|

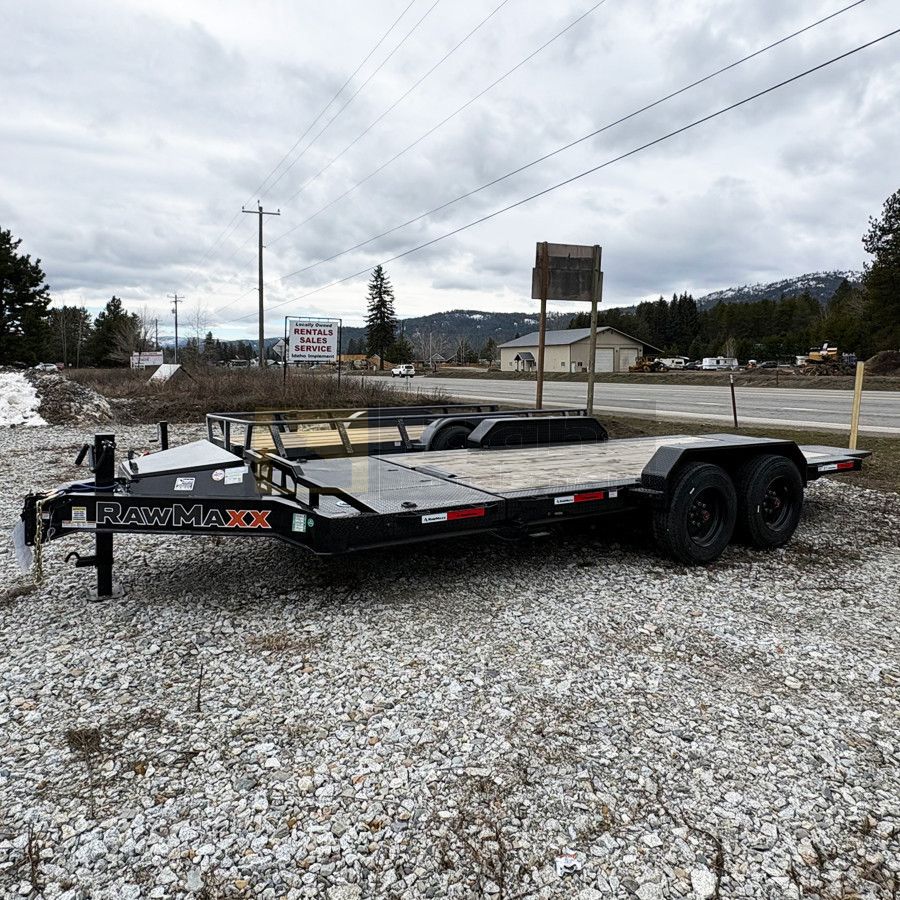

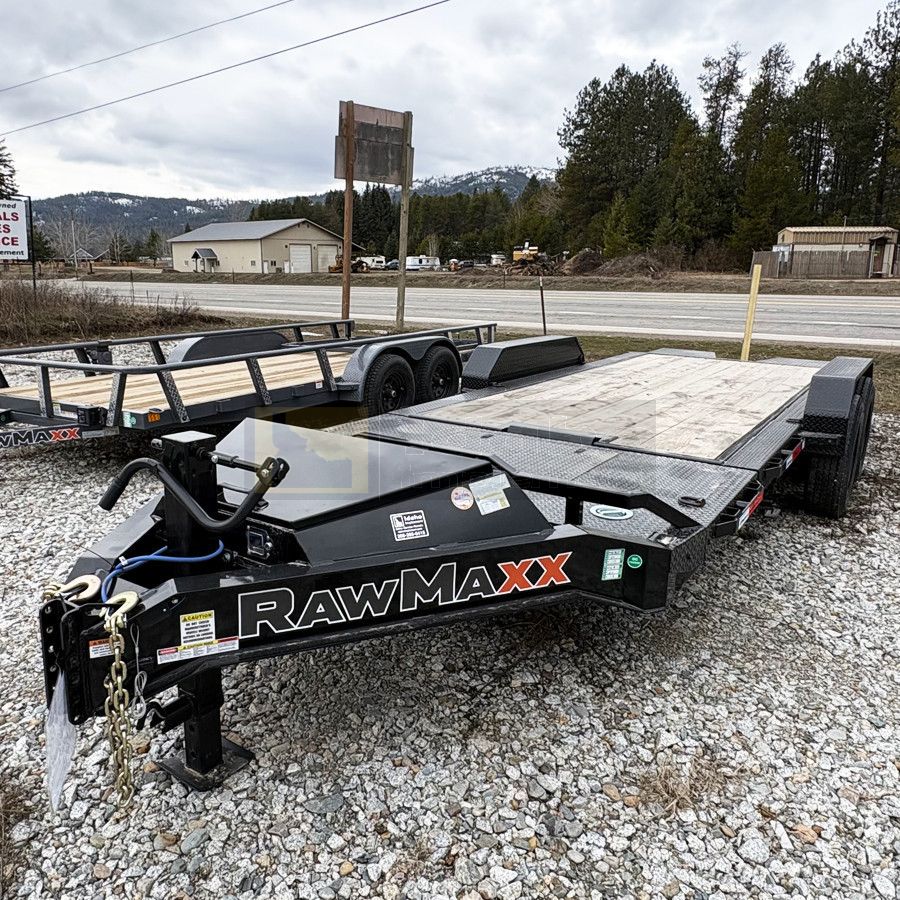

22' x 83" RawMaxx Tilt-Deck Equipment Trailer Model G7X22BP16K
This trailer is in stock now! Financing Available.
Price shown is Cash or Financed Price. Credit Card Price: $12,081
Financing Application: https://www.ezdealerquote.com/d-6671a0ae7ef3c/credit-application.html?eq_tractor=165&eq_model=G7X22BP16K-124828-JetBlack
Balanced - The Gravity Tilt Trailer Built for Effortless Loading
When loading speed, balance, and simplicity matter most, the RawMaxx G7X BP delivers. Available in 20’, 22’, and 24’ lengths, this gravity tilt bumper pull is rated at 14,000 lbs. GVWR with over 11,600 lbs. of usable load capacity, making it an ideal solution for hauling vehicles, equipment, and machinery without the need for ramps or hydraulics.
Built on an 8″ x 13 lb. I-beam frame with 3″ channel cross-members on 16″ centers, the G7X BP offers the strength and rigidity you expect from RawMaxx. A 4’ stationary front deck paired with a 16’ gravity tilt deck creates a naturally balanced platform that tilts smoothly under load and settles flat when secured. The 11° tilt angle allows for low-clearance loading while keeping operation fast and maintenance minimal.
A 2” treated lumber deck, 12-gauge steel fenders, formed tread plate side perimeter, and integrated rub rail with stake pockets and chain spools give the G7X BP durability where it counts. Inside the fenders, welded D-rings and swivel D-rings at the front corners provide flexible tie-down options for a wide range of loads.
Running on dual 7,000 lb. torsion axles with electric brakes, ST235/80R16 10-ply tires, and all-weather wiring with DOT-approved LED lighting, the G7X BP delivers a smooth, controlled ride mile after mile. With available upgrades like 8K torsion axles, steel flooring, electric winch, hydraulic jack, and aluminum wheels, it’s easy to tailor the trailer to your exact needs.
The RawMaxx G7X BP — balanced, efficient, and built to make loading easier without sacrificing strength.
| SKU | RAW-G7X22BP16K-124828 |
|---|---|
| Model | G7X22BP16K |
| Length, Deck | 22' |
| Width, Deck | 83" |
| Height, Deck | 24" |
| Weight | 4165 lbs |
| Weight Rating | GVWR: 16,000 lbs. GAWR: 8,000 lbs. Empty Weight: 4,165 lbs. Load Capacity: 13,610 lbs. |
| Finish | Powder Coat |
| Hitch Connection Type | 2-5/16" Adjustable Ball Coupler |
| Jack(s) | Front Jack: 1 Side Wind Drop Leg - 10,000 lbs. |
| Tool Box | Integrated Tool Box in Tongue |
| Safety System | Safety Chains: 3/8" G70 Safety Chains Breakaway System: Electric Breakaway Kit Reflective Tape: 3M DOT Compliant Reflective Tape |
| Frame / Deck | Side Side Perimeter: 3/16" Formed Thread Plate Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets Rub Rail: 2" Rub Rail With Spools Fenders: 3/16" Treadplate ( Drive-Over ) Fenders Frame Frame: 8" x 13 lb. I-beam Frame Cross-Members: 3" Channel / 16" Spacings Gravity Tilt Deck Front Deck: 6' Stationary Deck Deck: 16' Tilt Deck Tilt System: Gravity Up / Down Tilt Angle: 11° Flooring: 2” Treated Lumber Deck D-Rings: 4 D-Rings (Welded Inside Fenders), 2 Flush Mount D-Rings |
| Color | Black |
| Running Gear | Tires Type: Radial Tires Size: ST235/75R17.5 Ply: 18 Ply Rating: 5,650 lbs. Rims: 17.5” Black Mod Wheels Bolt Pattern: 8 on 6.5” Suspension Axle Type: Torsion Axles: 2 Rating: 8,000 lbs. Brakes: Electric |
| Electrical & Lighting | Wiring Front Plug: 7 - Way RV Frame Wiring: All Weather Wiring Harness Lighting Side Markers: 3/4" LED Bullet Lights Rear Lights: DOT Approved LED Lights |
| Warranty, Axles | 5 Year Dexter |
| Manufacturer's Warranty | 3 Year Structural / 1 Year Paint |
