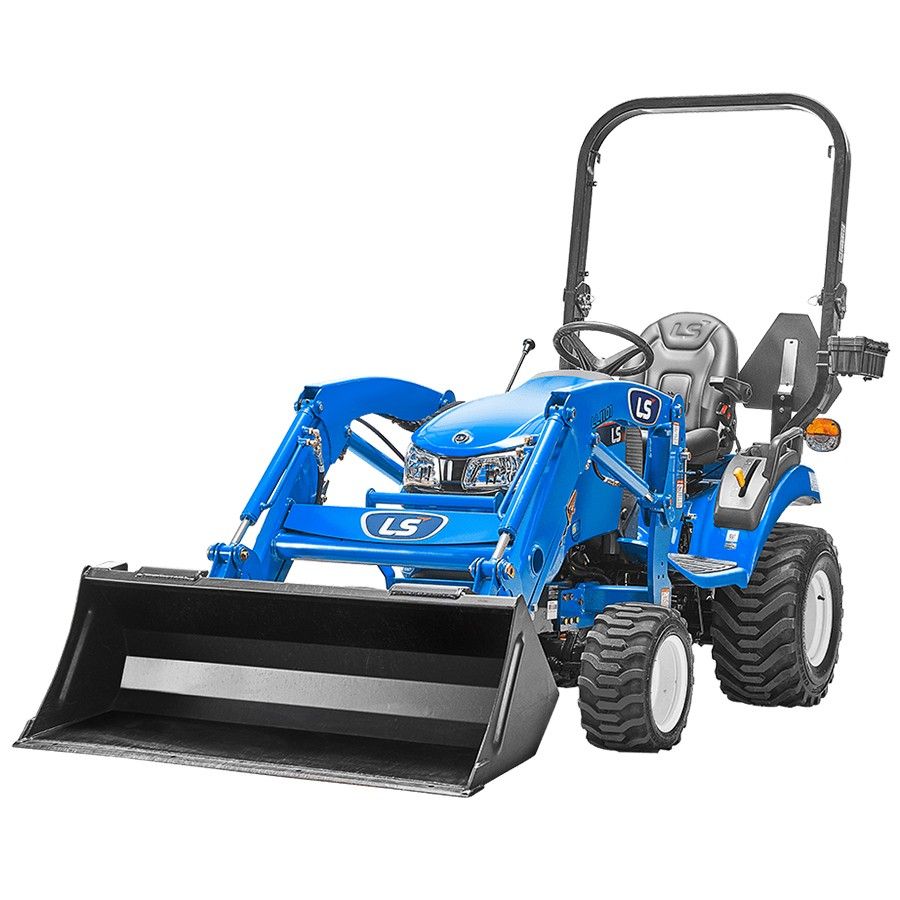

LS Model MT122 Tractor & Loader, 21.5HP Yanmar Diesel, 4WD, Hydrostatic Transmission
LS Model MT122 Tractor & Loader, 21.5HP Yanmar Diesel, 4x4, Hydrostatic Transmission
The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications.
ENGINE
Type: 3-cylinder, Indirect-injection, Water-cooled
Model (Tier 4 ): Yanmar 3TNV76F
Engine HP (Gross): 21.5
PTO HP: 15.0
Rated Speed (RPM): 3,000
Displacement (cu in.): 68.0
Fuel Tank Capacity (gal): 6.6
Alternator (V-A): 12V – 40
DRIVE TRAIN
Transmission: Hydrostatic Drive
No. of Speeds: 2 Ranges
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Mid PTO: Standard (2500 rpm)
Rear PTO: Standard (540 rpm)
HYDRAULIC SYSTEM
Implement pump (gpm): 4.6
Steering pump (gpm): 2.1
Total flow (gpm): 6.7
Category, 3 pt hitch: CAT 1
Hitch lift Capacity (lbs.) (Hitch End) 970 (728 @ 24”)
Lift control type: Position
DIMENSION
Overall length (Bumper to link, in.): 97
Wheelbase (in.): 56
Min. overall width with IND tires (in.): 47
Height to top of ROPS (in.): 87
TIRE SIZE
Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
WEIGHT
Total weight without ballast (lbs.): 1,433
More Information
SKU
LST-MT122
Model
MT122
Hitch Connection Type
Bolt On
