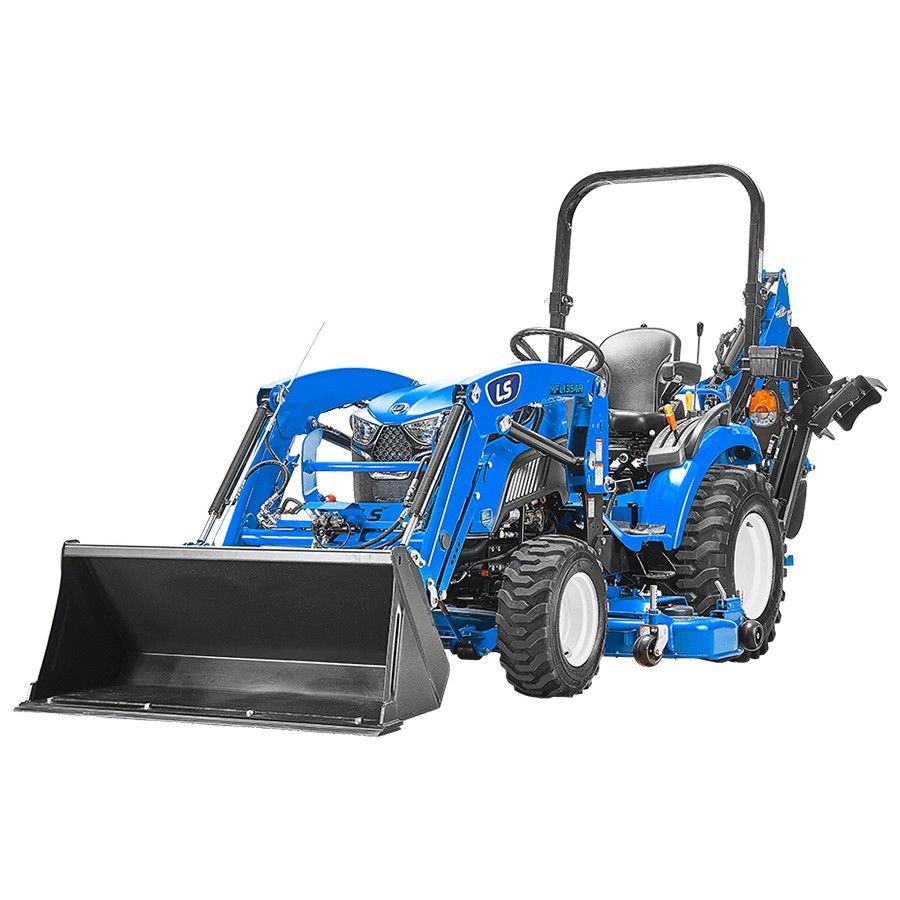

LS Model MT225S, Tractor & Loader, 25HP Yanmar Diesel, 4WD, Hydrostatic Transmission

ENGINE

• Type: 3Cylinder-IDI
• Model (Tier 4): 3TNV80F-ZXKLST(YANMAR)
• Engine HP (Gross): 24.7
• PTO HP: 19.3
• Rated Speed (RPM): 2,800
• Displacement (cu. in.): 77.3
• Fuel Tank Capacity (gal): 6.79
• Alternator (V-A): 12-40

DRIVE TRAIN

• Transmission: HST
• No. of Speeds: 3 Ranges
• Brakes: Wet, Multi Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear (rpm): 540
• Mid PTO (option): 2,500

HYDRAULIC SYSTEM

• Control System: Position
• Implement pump (gpm): 5.6
• Steering pump (gpm): 3.7
• Total flow (gpm): 9.3
• Category, 3 pt hitch: CAT 1
• Hitch Lift capacity (lb): 1,896
• Remote Valves: 1 PAIR (Option)

DIMENSION

• Overall length, Frame to link, (in.): 111.9
• Wheelbase (in.): 63.4
• Overall width with tires, in. (in.): 48.7
• Height to top of ROPS (in.): 86.4

TIRE SIZE

• IND (Front/Rear): 23 x 8.5 – 12 / 12 – 16.5
• Versa Turf (Front/Rear): 12 x 16.5/23 x 8.5

WEIGHT

• Total weight without ballast (lbs.): 1,764
