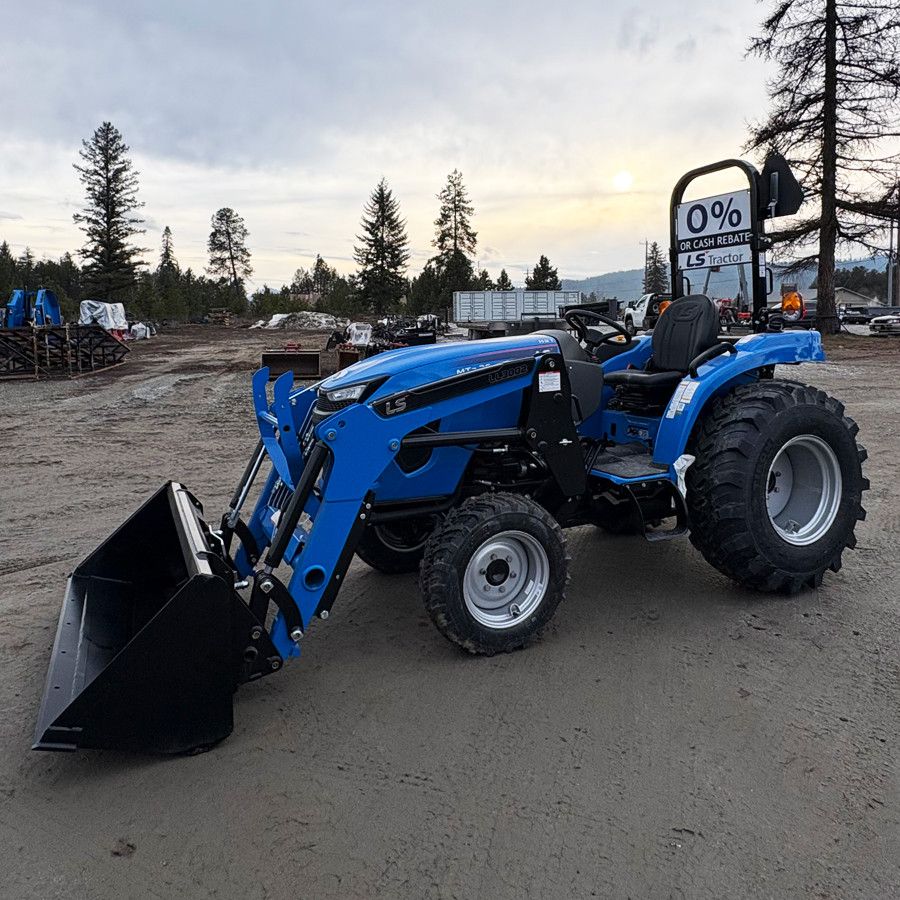

LS Model MT226HE Tractor & Loader, 24.6HP Mitsubishi Diesel, 4x4, Hydrostatic Transmission

LS Model MT226HE Tractor & Loader, 24.6HP Mitsubishi Diesel, 4x4, Hydrostatic Transmission

ENGINE

• Type: 3 Cylinder, Liquid-cooled, Diesel, NA, IDI
• Model (Tier 4): MHI
• Engine HP (Gross): 24.6
• PTO HP: 17.1
• Rated Speed (RPM): 2,500
• Displacement (cu. in): 80.4
• Fuel Tank Capacity (gal): 10.6
• Alternator (V-A): 12V – 50 Amps

DRIVE TRAIN

• Transmission Type: HST
• No. of Speed: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear, rpm: 540 (Standard)

HYDRAULIC SYSTEM

• Control System: Position
• Implement pump (gpm): 7.1
• Steering pump (gpm): 4.6
• Total flow (gpm): 11.7
• Category, 3 pt hitch: CAT I
• Hitch Lift capacity, lbs (Hitch end): 1,808
• Remote Valves: Option

DIMENSION

• Overall length (Frame to Link, in.): 119
• Overall width with tires (in.): 66
• Wheelbase (in.): 66
• Height to top (in.): 95

TIRE SIZE

• Ag Front / Rear: 7 – 14 / 11.2 – 24
• IND Front / Rear: 27X8.50-15 / 43X16.00-20
• VT Front / Rear: 27X8.50-15 / 43X16.00-20
• Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT

• Total weight without ballast (lbs.): 3,007
