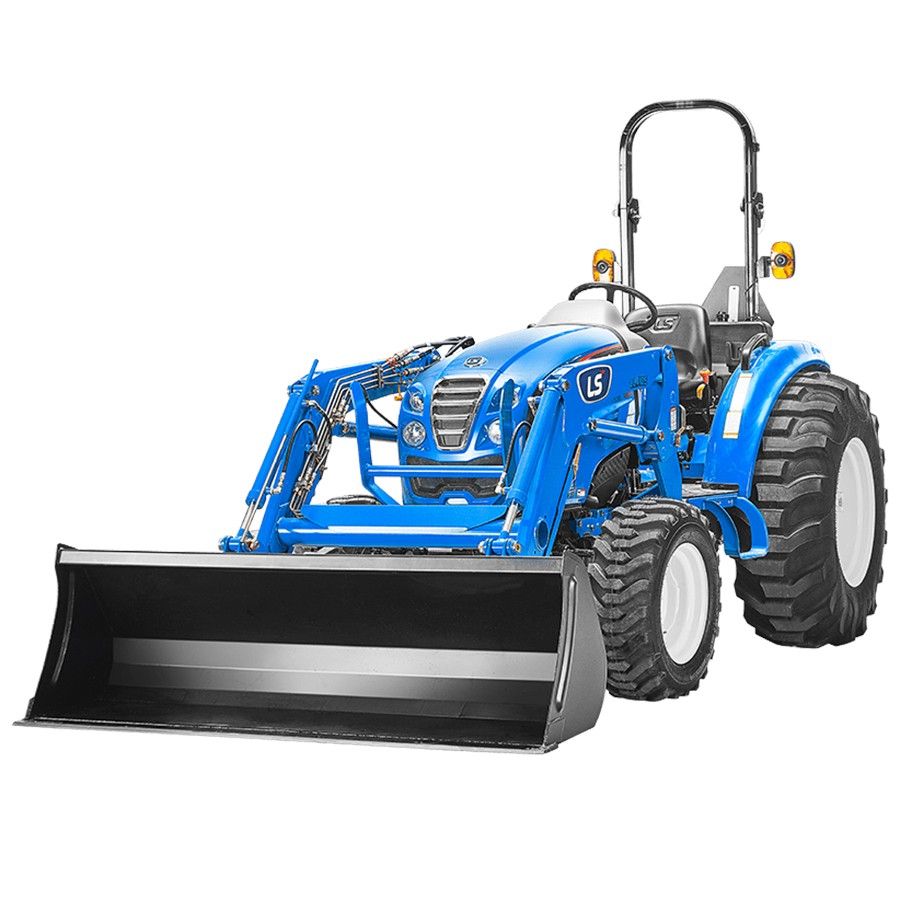

LS Model MT335H Tractor & Loader, 35HP Diesel, 4x4, Hydrostatic Transmission

ENGINE

• Type: 3-Cylinder, CRDI, Water-cooled Turbo Diesel
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 35
• PTO HP: 28.0
• Rated Speed (RPM): 2,600
• Displacement (cu. in): 114.7
• Fuel Tank Capacity (gal): 10.6
• Alternator: 12V – 85 Amps

DRIVE TRAIN

• Transmission: Synchro Shuttle/HST
• Speeds: 12F / 12R
• Brakes: Wet, Multi Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear, rpm: 540
• Mid PTO: Field Option (2000 rpm)
• Rear PTO: Standard (540 rpm)

HYDRAULIC SYSTEM

• Implement pump (gpm): 8.2
• Steering pump (gpm): 4.1 / 5.5 (HST)
• Total flow (gpm): 12.3 / 13.7 (HST)
• Category, 3 pt hitch: CAT 1
• Hitch Lift capacity (lb.): 1,808
• Lift control type: Position / Draft
• Remote Valves: 2 Pairs (Front), 2 Pairs (Remote) (Detent, Standard)

DIMENSION

• Overall length with 3pt (in.): 124.3
• Wheelbase (in.): 66
• Min. overall width with Ag tires (in.): 60
• Height to top of ROPS with Ag tires (in.): 93

TIRE SIZE

• Ag Front/Rear: 7 – 14 / 11.2 – 24
• Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20
• Turf Front/Rear: 25 x 8.5 – 14/ 41 x 14 – 20

WEIGHT

• Total weight without ballast (lbs.): 3,285
