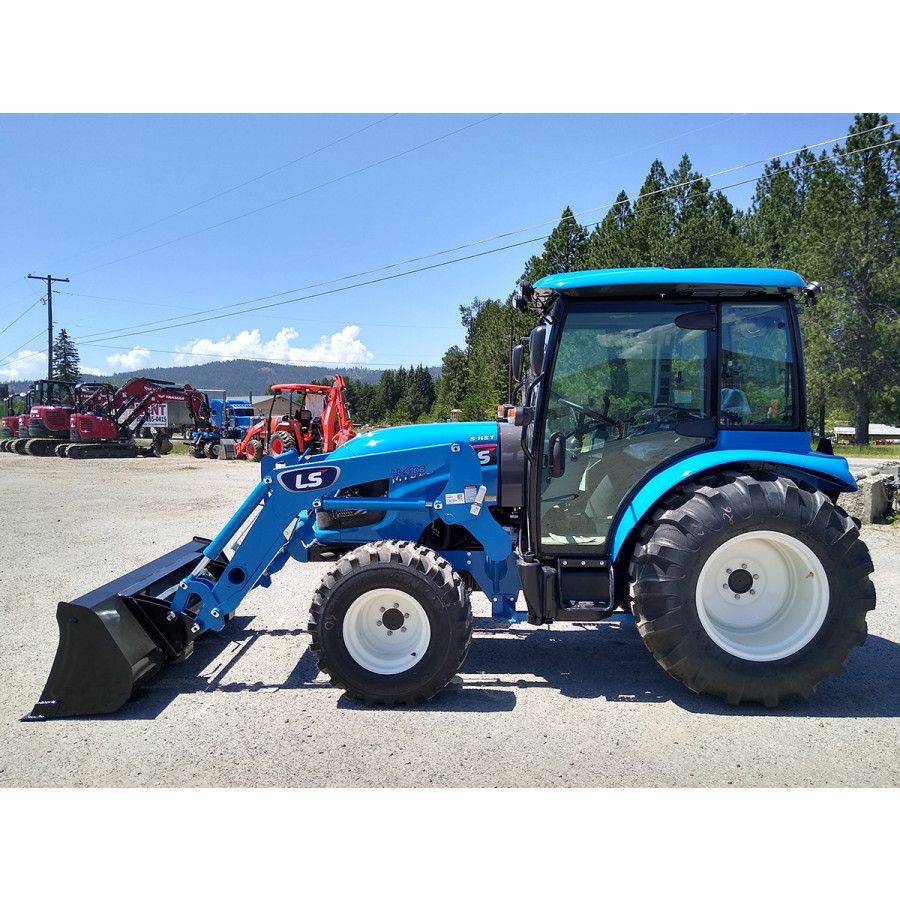

LS Model MT340HC Tractor & Loader, Deluxe Cab, Heat & AC, 40HP Diesel, 4x4, Hydrostatic Transmission

ENGINE

• Type: Vertical Water-Cooled 4Cycle Diesel Engine
• Model (Tier 4): L3C19-T
• Engine HP (Gross): 40
• PTO HP: 32.0
• Rated Speed (RPM): 2,600
• Displacement (cu. in): 114.7
• Fuel Tank Capacity (gal): 12.4
• Alternator: 12V – 70 Amps

DRIVE TRAIN

• Transmission: HST
• No. of Speeds: 3 Ranges (HST)
• Brakes: Wet, Multi Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Mid PTO (Option): 2,000
• Rear, rpm: 540 rpm

HYDRAULIC SYSTEM

• Control system: Position / Draft
• Implement pump (gpm): 8.2
• Steering pump (gpm): 5.5(HST)
• Total flow (gpm): 13.7(HST)
• Category, 3 pt hitch: CAT 1
• Hitch Lift capacity (lb.): 1,808
• Remote Valves: 2 Pairs (Front) / 2 Pairs (Rear) (Standard, Detent)

DIMENSION

• Overall length, Bumper to link in.: 128.3
• Wheelbase (in.): 69
• Overall width with tires (in.): 62
• Ht to top of rops / cab., in. (in.): 86.6

TIRE SIZE

• Ag Front/Rear: 7 – 14 / 11.2 – 24
• Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20
• Turf Front/Rear: 25 x 8.5 – 14 / 41 x 14 – 20

WEIGHT

• Total weight without ballast (lbs.): 3,661
