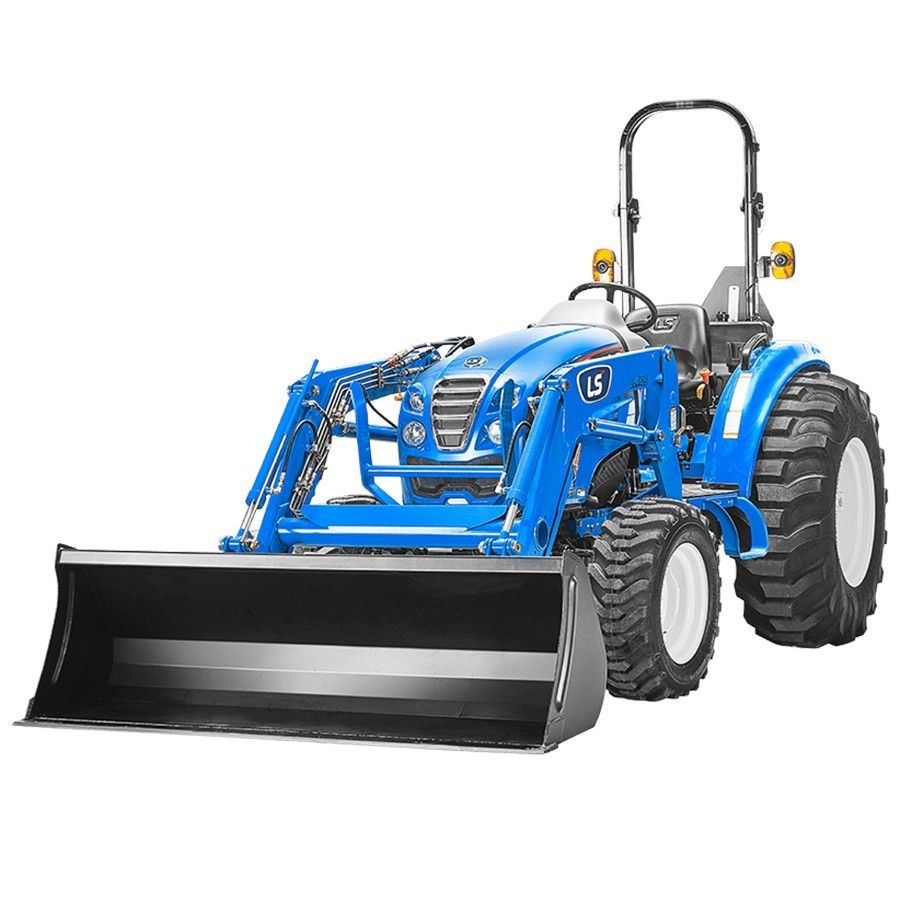

LS Model MT345E Tractor & Loader, 45HP Diesel, 4WD, Synchro Shuttle Transmission
LS Model MT345E Tractor & Loader, 45HP Diesel, 4WD, Synchro Shuttle Transmission
The MT3E Series provides a variety of horsepower ratings and transmissions to accommodate any customers needs. Those customers requiring value and power will find plenty of both in this robust series of LS tractor.
ENGINE
Type: Vertical Water Cooled 4 Cycle Diesel Engine
Model (Tier 4):L3C19-T
Emission: EPA & CARB Tier4F, EU Stage IIIB
Engine HP (Gross): 45 (33.5)
PTO HP: 36 – 38.2
Rated Speed (RPM): 2,600
Displacement (cu. in.): 114.7
Fuel Tank Capacity (gal): 13.7
DRIVE TRAIN
Transmission: HST
No. of Speeds: 3 Ranges
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear, rpm: 540
HYDRAULIC SYSTEM
Control System: Position
Implement pump (gpm): 8.2
Steering pump (gpm): 4.8
Total flow (gpm): 13.0
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb): 2,910
Remote Valves: 2 pairs (Front), 1/2 pairs (Rear, Option)
Steering: Hydrostatic Power Steering
DIMENSION
Overall length, Bumper to link (in.): 125
Wheelbase (in.): 68
Overall width with tires (in.): 74.8
Height to top of rops (in.): 100
TIRE SIZE
Ag (Front / Rear): 9.5-16 / 14.9-24
IND (Front / Rear): 10.0-16.5 / 17.5L-24
Turf Tire (Front / Rear) 29 x 12.50-15 / 44 x 18.00-20
Narrow Ag (Front / Rear): 7.0 – 14 / 9.5 – 24
WEIGHT
Total weight without ballast (lbs.): 3,724 (E) – 3,750 (HE)
More Information
SKU
LST-MT345E
Model
MT345E
Hitch Connection Type
Bolt On
