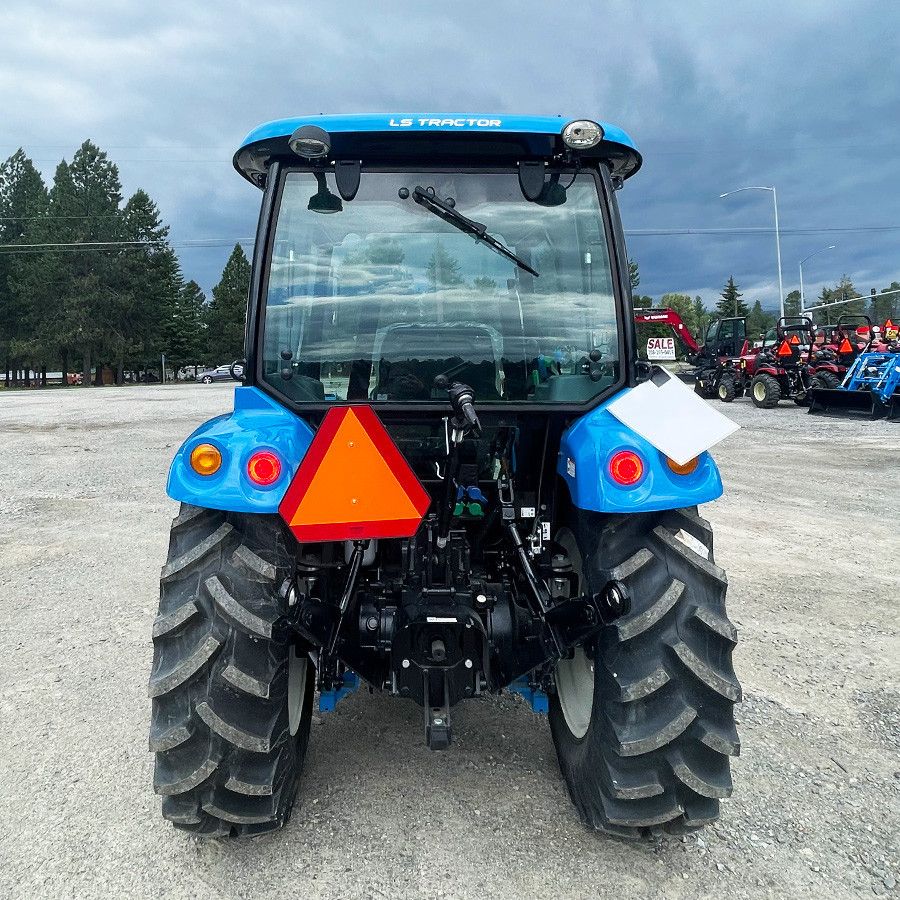

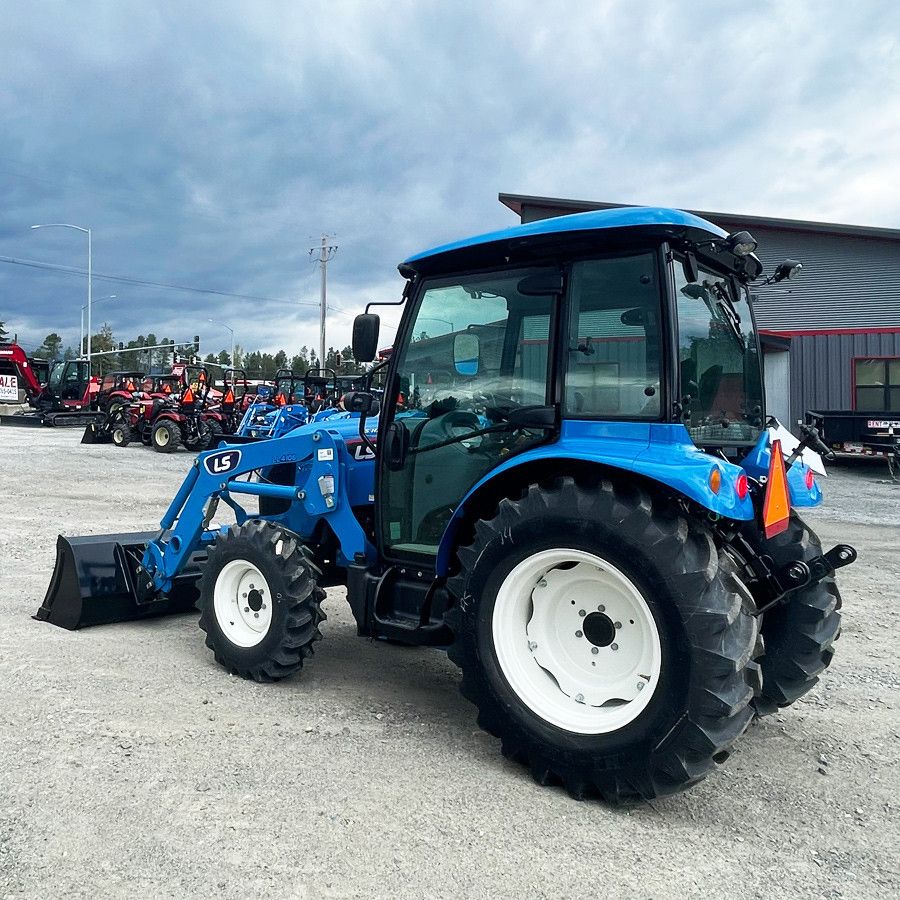

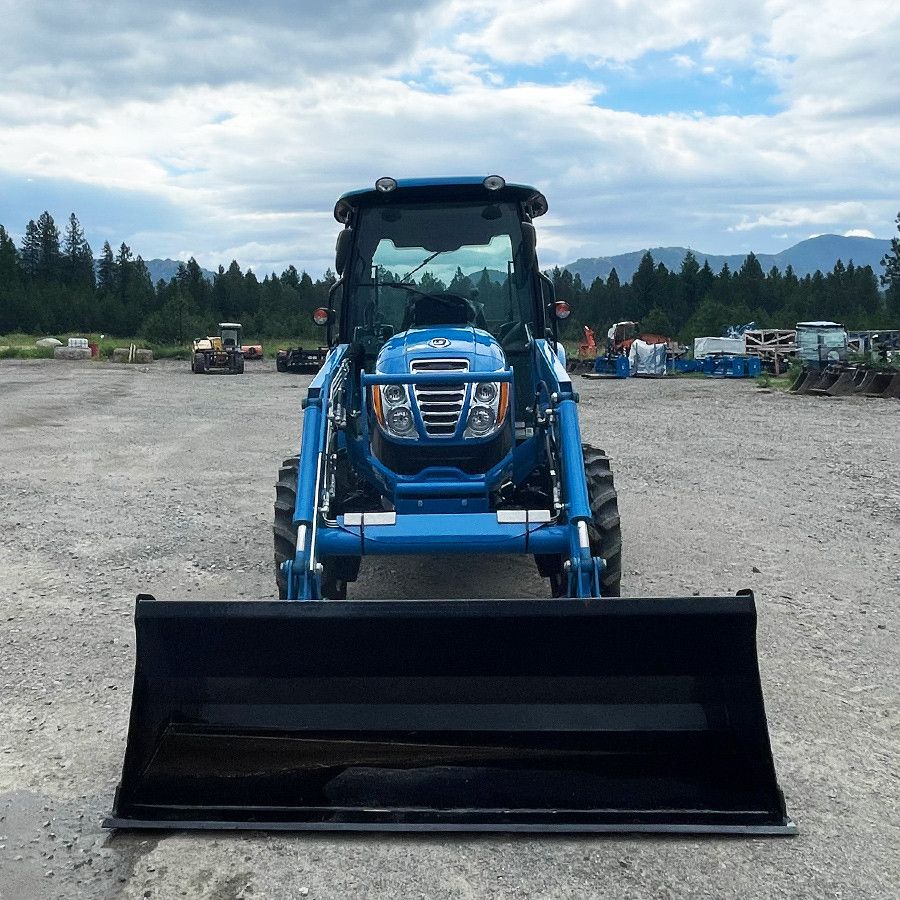

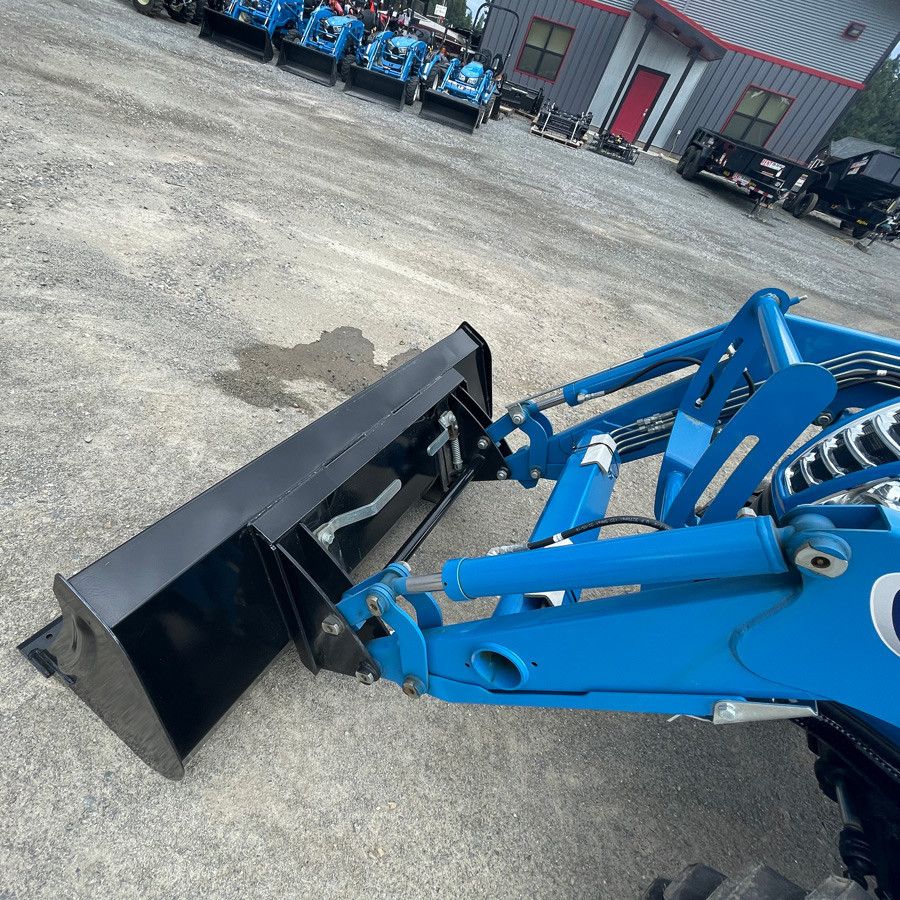

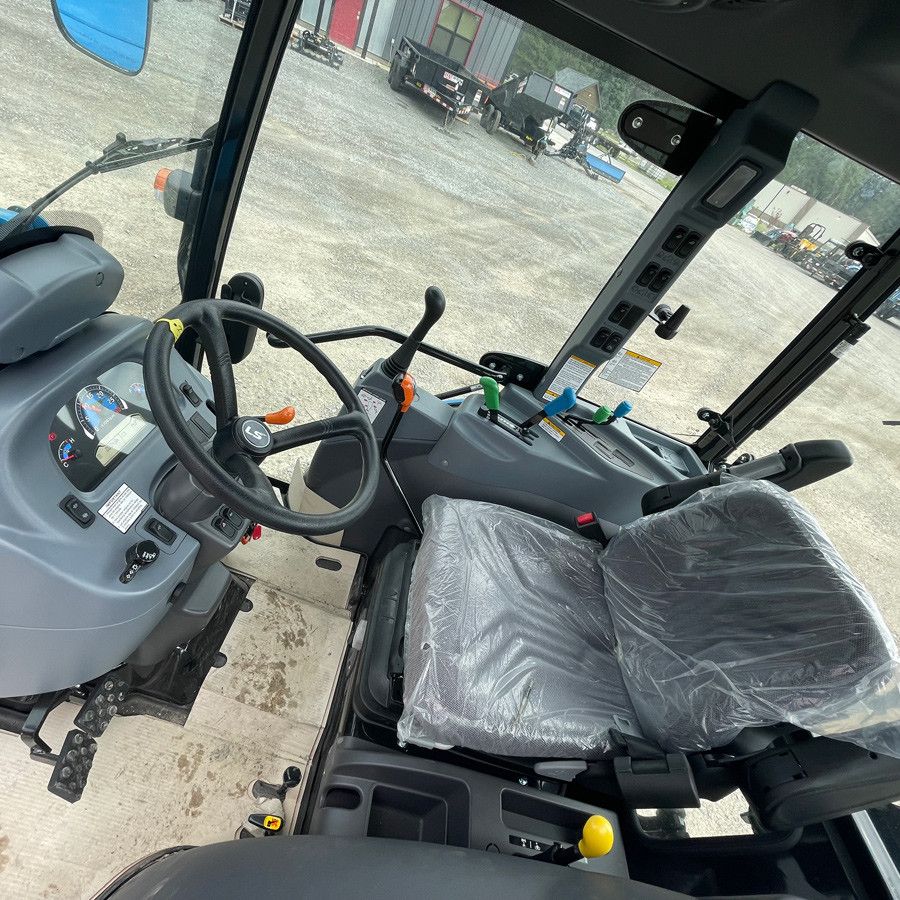

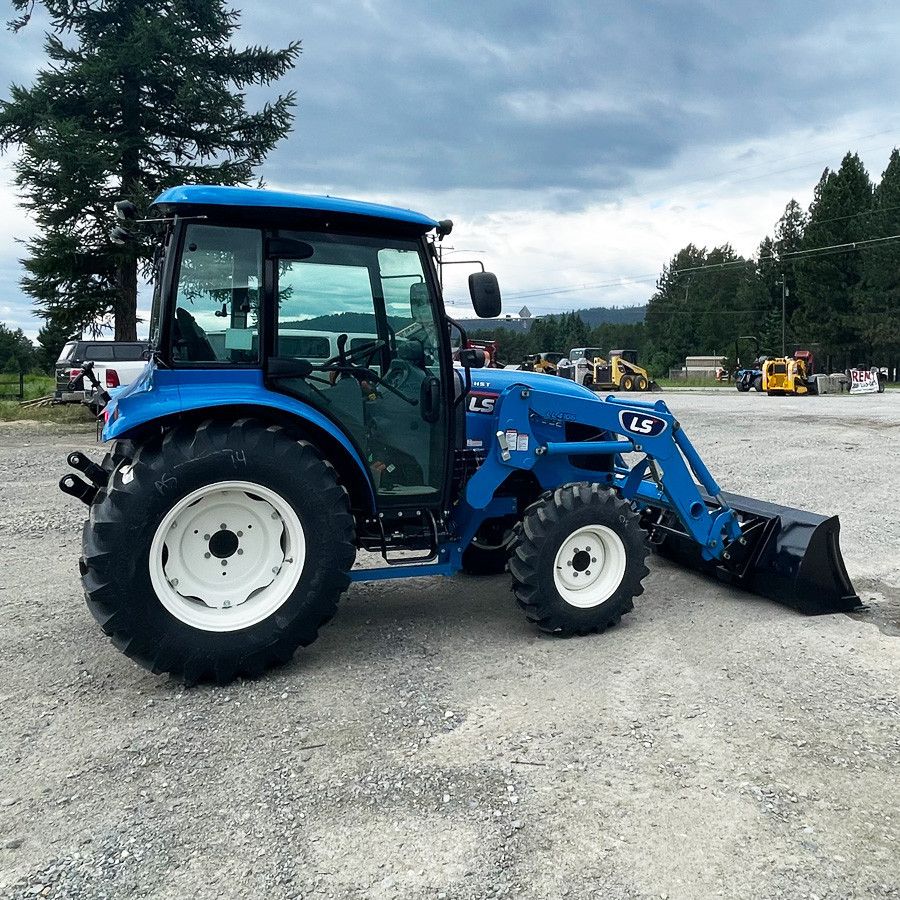

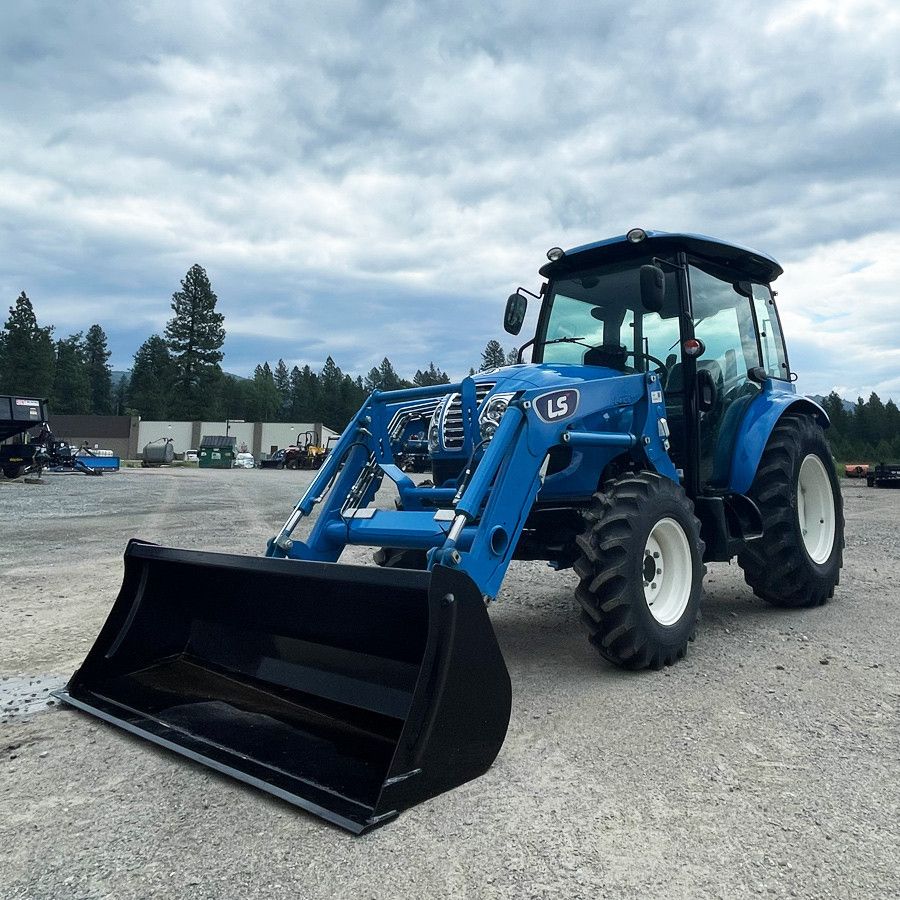

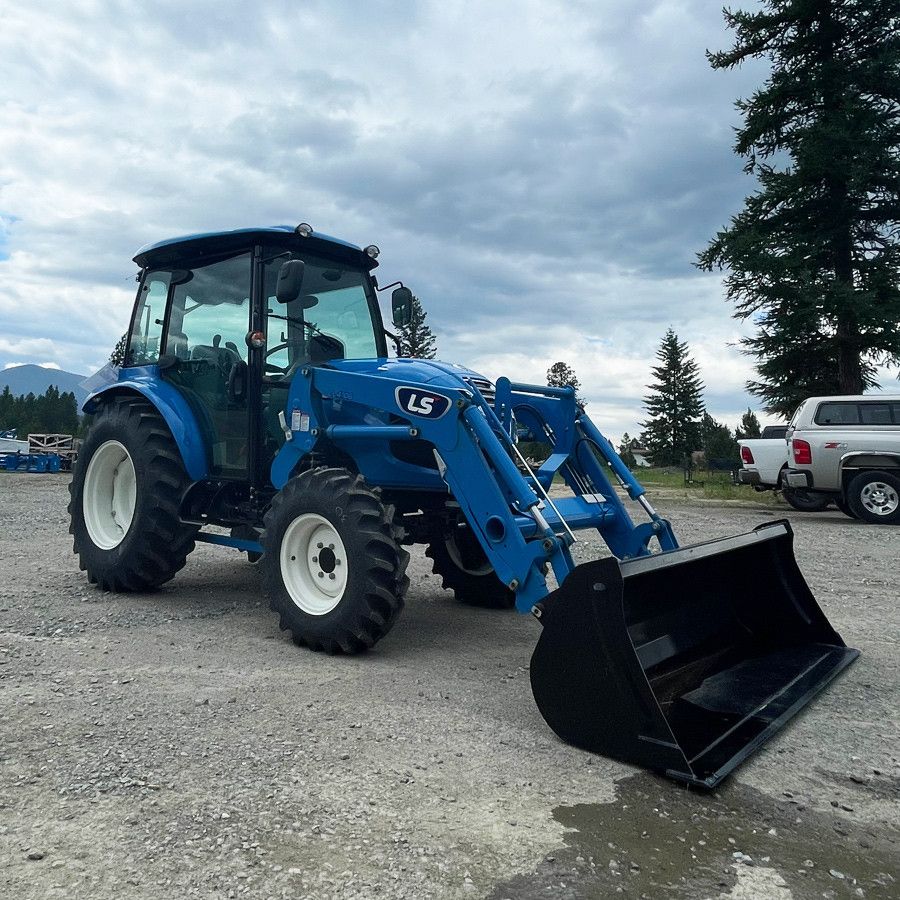

LS Model MT352HC Tractor & Loader, Deluxe Cab, Heat & AC, 52HP Diesel, 4x4, Hydrostatic Transmission

ENGINE

• Type: 3Cylinder, liquid-cooled, Diesel, TC, CRDI
• Model (Tier 4):L3C19-T
• Engine HP (Gross): 52
• PTO HP: 44.2 Hydr / 41.6 Gear
• Rated Speed (RPM): 2,600
• Displacement (cu. in.): 114.7
• Fuel Tank Capacity (gal): 12.4 (CABIN) / 10.6 (ROPS)
• Alternator V-A: 12 – 70

DRIVE TRAIN

• Transmission: Synchro shuttle / HST
• No. of Speeds: F16 x R16(GEAR) / 3 Ranges(HST)
• Brakes: Wet, Multi-disc

PTO

• Type: Independent
• Rear, rpm: 540

HYDRAULIC SYSTEM

• Control System: Position/Draft
• Implement pump (gpm): 8.2
• Steering pump (gpm): 4.1 Gear / 5.5 Hydro / 6.8 Hydro Cab
• Total flow (gpm): 12.3 Gear /13.7 Hydro / 15.0 Hydro Cab
• Category, 3 pt hitch: CAT 1
• Hitch Lift capacity (lb): 2,755
• Remote Valves: 2 PAIR (1 DETENT, 1 STD)

DIMENSION

• Overall length, Bumper to link (in.): 133
• Wheelbase (in.): 73.2
• Overall width with tires (in.): 62.5
• Height to top of rops (in.): 95 ROPS / 90 Cab

TIRE SIZE

• Ag (Front / Rear): 9.5 – 16 / 13.6 – 24
• IND (Front / Rear): 12 – 16.5 / 17.5L – 24
• Turf Tire (Front / Rear) 28 x 8.5 – 15 / 41 x 14 – 20

WEIGHT

• Total weight without ballast (lbs.): 3,935 – 4,446(cab)
