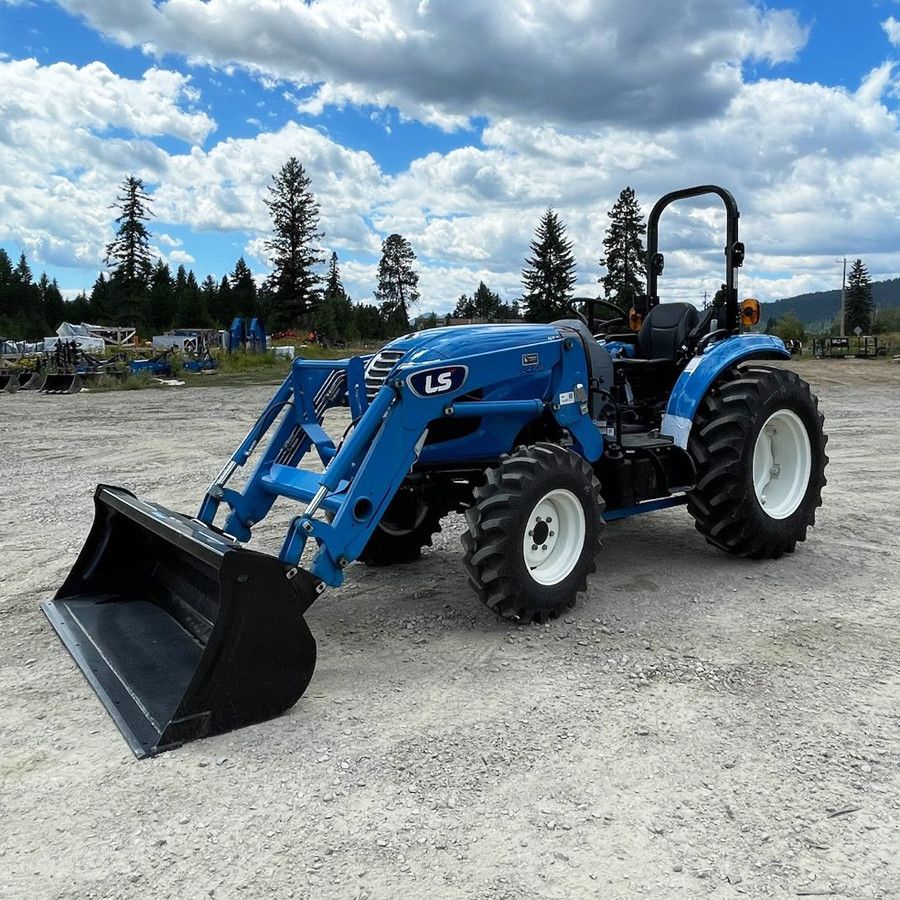

LS Model MT352PCT Tractor & Loader, 52HP Diesel, 4x4, Power Clutch Shuttle Transmission
The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive, hydrostatic transmissions or Powerclutch. All models feature an ergonomic design making this a truly premium tractor.
ENGINE
Type: 3Cylinder, liquid-cooled, Diesel, TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 52
PTO HP: 44.2
Rated Speed (RPM): 2,600
Displacement (cu. in.): 114.7
Fuel Tank Capacity (gal): 12.4 (CABIN) / 10.6 (ROPS)
Alternator V-A: 12 – 70
DRIVE TRAIN
Transmission: Synchro shuttle / Powerclutch
No. of Speeds: F16 x R16(GEAR)
Brakes: Wet, Multi-disc
PTO
Type: Independent
Rear, rpm: 540
HYDRAULIC SYSTEM
Control System: Position/Draft
Implement pump (gpm): 8.2
Steering pump (gpm): 4.1 Gear
Total flow (gpm): 12.3 Gear
Category, 3 pt hitch: CAT 2
Hitch Lift capacity (lb): 2,755
Remote Valves: 2 PAIR (1 DETENT, 1 STD)
DIMENSION
Overall length, Bumper to link (in.): 133
Wheelbase (in.): 73.2
Overall width with tires (in.): 62.5
Height to top of rops (in.): 95 ROPS / 90 Cab
TIRE SIZE
Ag (Front / Rear): 9.5 – 16 / 13.6 – 24
IND (Front / Rear): 12 – 16.5 / 17.5L – 24
Turf Tire (Front / Rear) 28 x 8.5 – 15 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs.): 3,869 – 4,380(cab)
