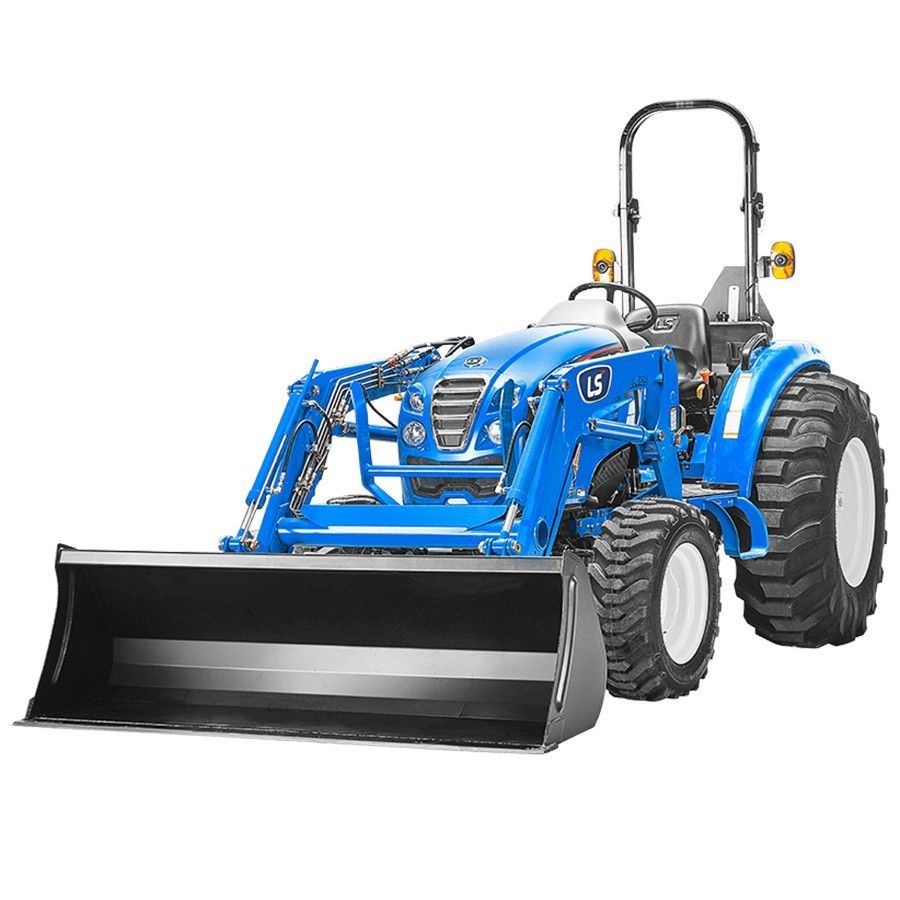

LS Model MT355E Tractor & Loader, 55HP Diesel, 4x4, Synchro Shuttle Transmission

ENGINE

• Type: Vertical Water Cooled 4 Cycle Diesel Engine
• Model (Tier 4):L3C19-T
• Emission: EPA & CARB Tier4F, EU Stage IIIB
• Engine HP (Gross): 55
• PTO HP: 44 (HST) / 46.7 (gear)
• Rated Speed (RPM): 2,600
• Displacement (cu. in.): 114.7
• Fuel Tank Capacity (gal): 13.7

DRIVE TRAIN

• Transmission: Synchro Shuttle/Constant Mesh
• No. of Speeds: F8 × R8
• Brakes: Wet, Multi Disc

PTO

• Type: Independent
• Rear, rpm: 540

HYDRAULIC SYSTEM

• Control System: Position
• Implement pump (gpm): 8.2
• Steering pump (gpm): 4.8
• Total flow (gpm): 13.0
• Category, 3 pt hitch: CAT 1
• Hitch Lift capacity (lb): 2,910
• Remote Valves: 2 pairs (Front), 1/2 pairs (Rear, Option)
• Steering: Hydrostatic Power Steering

DIMENSION

• Overall length, Bumper to link (in.): 125
• Wheelbase (in.): 68
• Overall width with tires (in.): 74.8
• Height to top of rops (in.): 100

TIRE SIZE

• Ag (Front / Rear): 9.5-16 / 14.9-24
• IND (Front / Rear): 10.0-16.5 / 17.5L-24
• Turf Tire (Front / Rear) 29 x 12.50-15 / 44 x 18.00-20
• Narrow Ag (Front / Rear): 7.0 – 14 / 9.5 – 24

WEIGHT

• Total weight without ballast (lbs.): 3,724
