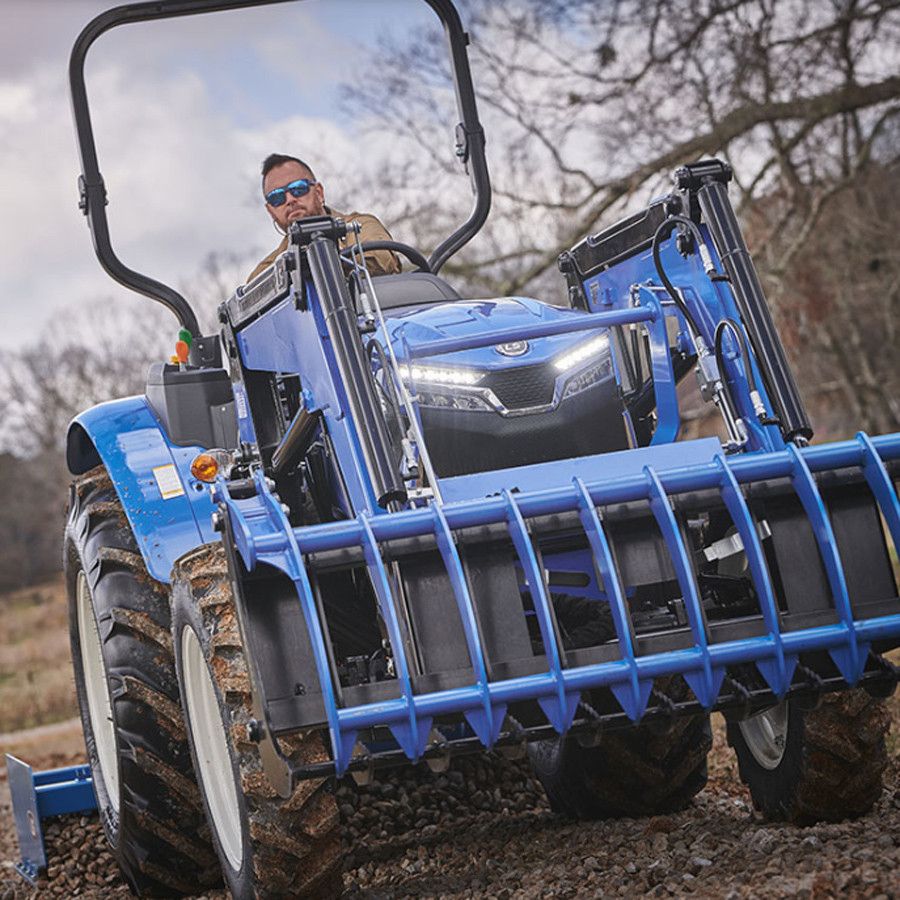

LS Model MT463 Tractor & Loader, 63HP Diesel, 4x4, Synchro Shuttle Transmission
The entry level model to the MT4 Series, the MT463 is still well equipped to tackle any task you set before it and is available with either a synchro shuttle or power shuttle transmission.
The MT463 features increased productivity with its enhanced front loader, increased operator comfort with new seats and more efficient operating space.
Even with the increased power, maintenance is simple with no DEF required and a well thought out layout that makes routine maintenance tasks a breeze.
ENGINE
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model (Tier 4): L4C25-T
Engine HP (Gross): 63
PTO HP: 54.1
Rated Speed (RPM): 2,500
Displacement (cu. in): 152.85
Fuel Tank Capacity (gal): 24.3
DRIVE TRAIN
Transmission Type: Synchro Shuttle
No. of Speed: F16 X R16
Brakes: Wet, Multi-disc
PTO
Type: Independent
Rear, rpm: 540, 540E (Standard)
HYDRAULIC SYSTEM
Control System: Position / Draft
Implement pump (gpm): 14.5
Steering pump (gpm): 6.6
Total flow (gpm): 21.1
Category, 3 pt hitch: CAT II
Hitch Lift capacity, lbs (Hitch end): 3,483 (@ 24˝ from the Hitch end)
