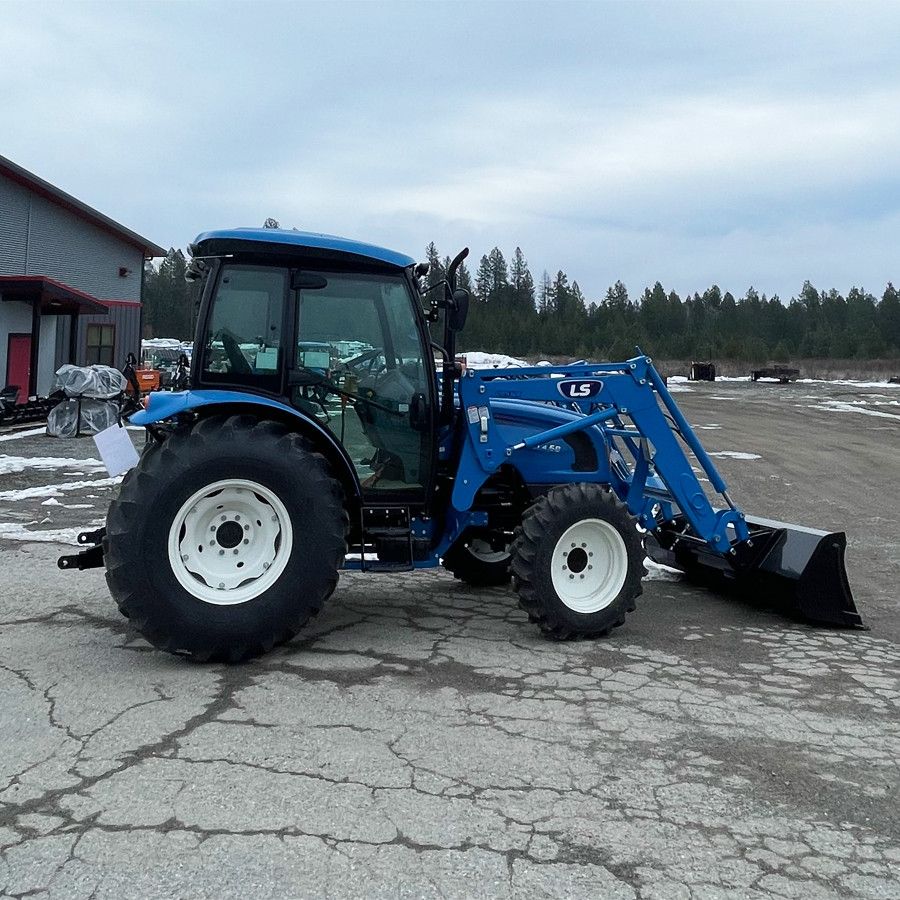

LS Model MT463CPS Tractor & Loader, Enclosed Cab, Heat & AC, 63HP Diesel, 4x4, Power Shuttle Transmission

The entry level model to the MT4 Series, the MT463CPS is still well equipped to tackle any task you set before it and is available with either a synchro shuttle or power shuttle transmission.

The MT463CPS features increased productivity with its enhanced front loader, increased operator comfort with new seats and more efficient operating space as well as class leading standard functions like the EZ-Brake. The new refined cab design provides increased visibility as well as a 15% larger interior space for operator comfort.

Even with the increased power, maintenance is simple with no DEF required and a well thought out layout that makes routine maintenance tasks a breeze.

ENGINE

  • Type: Vertical Water-Cooled 4Cycle Diesel Engine
  • Model (Tier 4): L4C25-T
  • Engine HP (Gross): 63
  • PTO HP: 54.1
  • Rated Speed (RPM): 2,500
  • Displacement (cu. in): 152.85
  • Fuel Tank Capacity (gal): 24.3

DRIVE TRAIN

  • Transmission Type: Electro Power Shuttle
  • No. of Speed: F16 X R16
  • Brakes: Wet, Multi-disc

PTO

  • Type: Independent
  • Rear, rpm: 540, 540E (Standard)

HYDRAULIC SYSTEM

  • Control System: Position / Draft
  • Implement pump (gpm): 14.5
  • Steering pump (gpm): 6.6
  • Total flow (gpm): 21.1
  • Category, 3 pt hitch: CAT II
  • Hitch Lift capacity, lbs (Hitch end): 3,483 (24″ aft. of Hitch)
  • Remote Valves: 2 Pairs (Front), 2 pairs (Rear)
  • Steering: Hydrostatic Power Steering

DIMENSION

  • Overall length (Frame to Link, in.): 135
  • Overall width with tires (in.): 72.6
  • Wheelbase (in.): 83.1
  • Height to top (in.): 105.4

TIRE SIZE

  • Standard Ag Front / Rear: 9.5 – 24 / 16.9 – 28
  • IND Front / Rear: 10.5/80×18 10PR / 19.5Lx24 8PR
  • Large Ag Front / Rear: 11.2-24 / 16.9-30
  • R14 Front / Rear: 320-85R20 119D / 420/75R34 142D

WEIGHT

  • Total weight without ballast (lbs.): 5,776
More Information
SKU LST-MT463CPS
Model MT463CPS
Hitch Connection Type Bolt On
